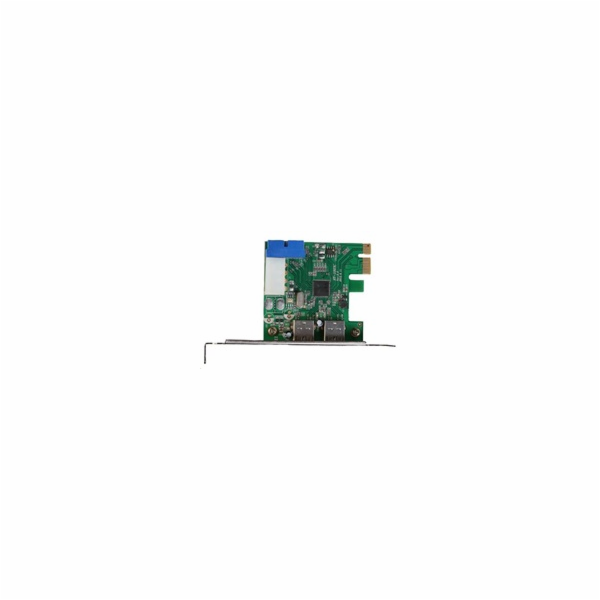

SUPERMICRO i-Tec PCIe Karta 4x USB3.0 (2x int, 2x ext)

PCIe to USB 3.0 adapter is PCIe x 1 card with 2 external and 2 internal USB 3.0 ports (all of them are back compatible with USB 2.0 and USB 1.1).
It is fully compliant with PCI Express Base Specification Revision 2.0. Adapter supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices with up to 5 Gbps speed data rate.
Built-in 4-pin power slot for receiving extra power supply from system. Internal USB 3.0 2x port is ended with 19pin "header male" connector.


Card fully compliant with PCI Express Base Specification Revision 2.0
2 x external USB 3.0 type A, 2 x internal USB 3.0 via 1 x 19pin "header male" connector
Interface USB 3.0, backwards compatible with USB 2.0, 1.1
Data transfer rate up to 5 Gbps
Built-in 4-pin power connector for receiving extra power supply from system
Hot-swapping feature allows you to connect/disconnect devices without powering down the system
OS Windows XP, Vista, 7, 8, 8.1, 10 32/64bit
Product size 120 x 66 x 20 mm
Product weight 47 g
Package size 188 x 148 x 33 mm
Package weight 126 g


System requirements
Hardware requirements
One available PCI Express slot
One available Molex connector on PSU

Operating system
Windows XP, Vista, 7 32/64bit, 8 32/64bit, 8.1 32/64bit, 10 32/64bit

Package Content

PCIe to 2 x external + 2 x internal USB 3.0 adapter
Low profile plate for an installation into lower cases
Driver CD
User´s Guide
