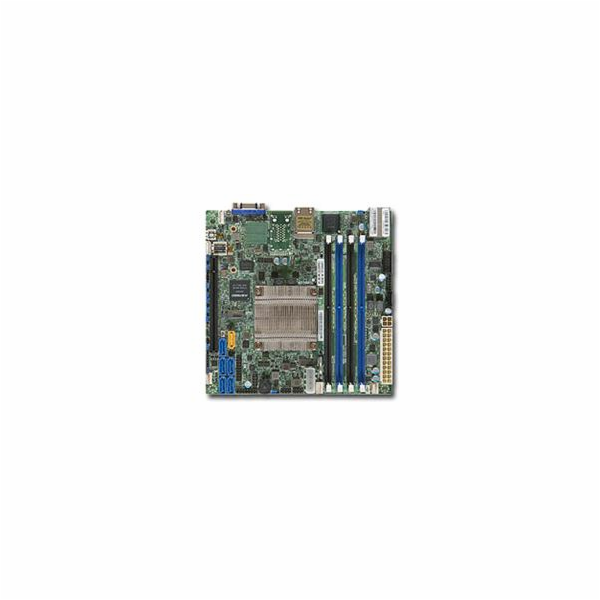

MBD-X10SDV-F X10SDV-F
Physical Stats
Form Factor Mini-ITX
Dimensions 6.7" x 6.7" (17.02cm x 17.02cm)
Processor/Cache
CPU Intel® Xeon® Processor D-1541.
Single Socket FCBGA1667 supported, CPU TDP support 45W
Cores / Cache 8 cores, 16 threads / 12MB cache
System Memory
Memory Capacity Up to 128GB Registered ECC RDIMM, DDR4-2133MHz
Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
Memory Type 2400/2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes 4GB, 8GB, 16GB, 32GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset System on Chip
SATA SoC controller for 6 SATA3 (6 Gbps) ports;
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers Dual LAN with Intel® Ethernet Controller I350-AM2
Single LAN with Virtual Machine Device Queues reduce I/O overhead
Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
Graphics Aspeed AST2400 BMC
Input / Output
SATA 6 SATA3 (6Gbps) port
LAN 2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB 4 USB 2.0 ports (4 headers, Type A))
2 USB 3.0 ports (2 rear)
Video Output 1 VGA port
Serial Port / Header 1 COM Port (1 header)
TPM TPM Header
Expansion Slots
PCI-E 1 PCI-E 3.0 x16
M.2 PCI-E 3.0x4, M Key 2242/2280
M.2 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280
System BIOS
BIOS Type 128Mb SPI Flash with AMI BIOS
BIOS Features PCI 3.0
ACPI 5.0
Hardware BIOS Virus protection
RTC (Real Time Clock) Wakeup
SMBIOS 2.8
UEFI 2.4
USB Keyboard support
Management
Software Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog
Power Configurations ACPI Power Management
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +1.8V, +12V, +3.3V, +5V, 4 fans with tachometer monitoring, Chassis intrusion header, HT, Memory, Memory Voltages, Supports system management utility, System level control, System temperature
FAN 3x 4-pin fan headers (up to 3 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for on/off control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors
Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LED CPU / System Overheat LED, UID/Remote UID
Other Features 12V DC or ATX Power Source, 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, RoHS, SDDC, System level control, UID, WOL
Operating Environment
Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)
