Product SKUs

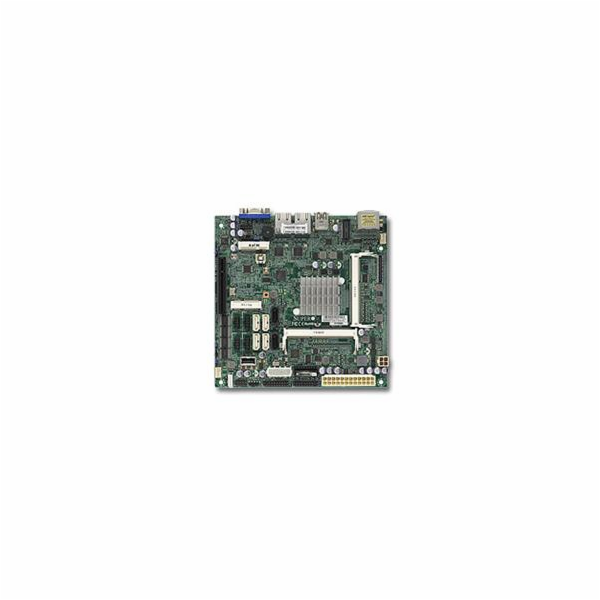

MBD-x10sba x10sba
Physical Stats
Form Factor Mini-ITX
Dimensions 6.7" x 6.7" (17.02cm x 17.02cm)
Processor/Cache
CPU Intel® Celeron® Processor J1900.
Single Socket FCBGA1170 supported, CPU TDP support Up to 10W TDP
2M Cache, up to 2.42 GHz, 8W (formerly Bay Trail)
Cores / Cache 4 cores, 4 threads / 2MB L2 cache
System Memory
Memory Capacity Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3-1333MHz, in 2 DIMM slots
2x 204-pin SO-DIMM socket ;
8GB with 2x 4GB SODIMM configuration Some 1600MHz memory can be used, but memory capacity will operate at 1333MHz
Memory Type 1333/1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs
DIMM Sizes 2GB, 4GB
Memory Voltage 1.35V
On-Board Devices
Chipset Intel® J1900 System on Chip
SATA SoC controller for 2 SATA2 (3 Gbps) ports;
Marvel 88SE9230 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,10
Network Controllers Dual LAN with Intel® Ethernet Controller I210-AT
Audio ALC 888S HD Audio
Graphics Intel® HD 4000 Graphics
Input / Output
SATA 4 SATA3 (6Gbps) port
2 SATA2 (3Gbps) ports
LAN 2 RJ45 Gigabit Ethernet LAN ports
USB 5 USB 2.0 ports (1 rear + 3 headers + 1 Type A)
1 USB 3.0 ports (1 rear);
USB 3.0: Intel? SoC
Video Output 1 HDMI port, 1 DP (DisplayPort) port, 1 VGA port
Serial Port / Header 4 COM Ports (4 headers)
4 fast UART 16550 serial
TPM 1 TPM Header
Expansion Slots
PCI-E 1 PCI-E 2.0 x2
1 Mini-PCI-E slot, 1 mSATA slot
System BIOS
BIOS Type AMI UEFI
BIOS Features Plug and Play (PnP)
ACPI 5.0
UEFI 2.3.1
SMBIOS 2.7.1
DMI 2.3
USB Keyboard support
RTC (Real Time Clock) Wakeup
3TB HDD Support
Management
Software NMI, SuperDoctor® 5, Watchdog
Power Configurations ACPI Power Management
Main Switch Override Mechanism
Keyboard Wakeup from Soft-Off
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +3.3V, +5V, Memory, Memory Voltages, System level control, System temperature
FAN 2x 4-pin fan headers (up to 2 fans), Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors
Temperature Monitoring for CPU and chassis environment, CPU thermal trip support
LED CPU / System Overheat LED, Standby alert LED
Other Features 12V DC or ATX Power Source, 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, System level control, WOL
Operating Environment
Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range -20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
Parts List ?
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X10SBA 1 X10SBA Motherboard
I/O Cable 1 CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00058-0N 1 Standard I/O Shield for X10SBA with EMI Gasket
Optional Parts List
Name Part Number Qty Description
mSATA SSD-MS064-PHI 1 Supermicro 64GB mSATA SSD, Half-Size
1U I/O Shield MCP-260-00068-0B 1 1U I/O Shield for X10SBA with EMI Gasket in CSE-510/505/504
Chassis (Optimized for x10sba)
Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC504-203B
SC505-203B
SC721TQ-250B
