Product SKUs

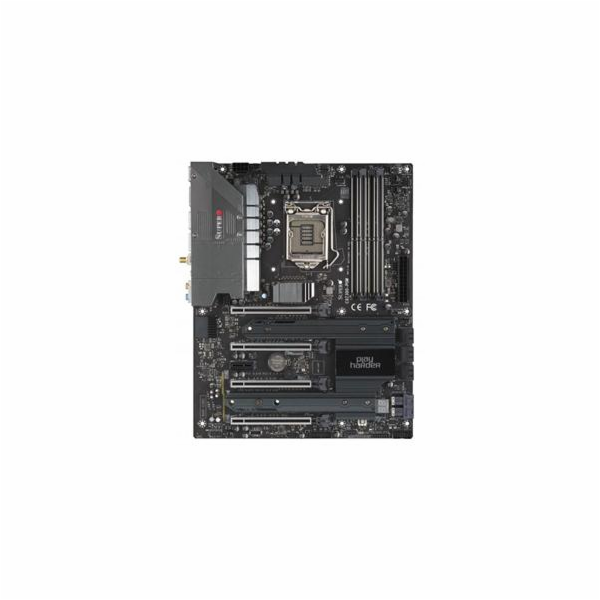

MBD-C9Z390-PGW C9Z390-PGW
Physical Stats
Form Factor ATX
Dimensions 12" x 9.6" (30.48cm x 24.38cm)
Processor/Cache
CPU Intel® 8th/9th Generation Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® series Processor.
Single Socket LGA 1151 supported, CPU TDP support Up to 140W
System Memory
Memory Capacity Up to 64GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 8th series and Gen 9th core i3, Pentium and Celeron) Up to 128GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 9th core i5/i7/i9)
Memory Type 2666MHz/2400MHz DDR4 288-pin Non-ECC UDIMM
DIMM Sizes 4GB, 8GB, 16GB, 32GB
Memory Voltage 1.2V
On-Board Devices
Chipset Intel® Z390 Express
SATA Intel® Z390 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers Single LAN with Intel® single Ethernet PHY i219V
Single LAN with Aquantia® AQC107 10G Ethernet Controller
Audio ALC 1220 HD Audio
Graphics Display port up to 1.2, HDMI up to 2.0a
Input / Output
SATA 6 SATA3 (6Gbps) ports
USB 2 USB 2.0 ports (2 via headers, Type A))
4 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers)
5 USB 3.1 Gen2 ports (3 Rears Type A + 1 Rear Type C, 1 via header); *Internal USB3.1 Gen2 header is for one Type C deivce
Video Output 2 DP (DisplayPort) ports, 1 HDMI port,
Display port up to 1.2, HDMI up to 2.0a
Serial Port / Header 1 COM Port (1 header)
TPM 1 TPM Header
Expansion Slots
PCI-E 4 PCI-E 3.0 x16 slots (16/NA/16/NA or 16/NA/8/8 or 8/8/16/NA or 8/8/8/8),
1 PCI-E 3.0 x1
M.2 M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 and 1 CNVi
Form Factor: 2260/2280/22110, 2260/2280, 2230
Key: M-Key , M-Key , E-Key (RAID 0,1 support)
M.2-M1 port shares PCI-E link with U2-1 port;M.2-M2 port shares link with SATA port4 and port5; M.2-E1 port pre-installed one 802.1ac WiFi+BT5.0 module
System BIOS
BIOS Type AMI 32Mb SPI Flash ROM
BIOS Features ACPI 6.0
Management
Software SuperDoctor® 5, Watchdog
System Management Software SuperDoctor 5
Power Configurations ACPI Power Management
Control of power-on for recovery from AC power loss
PC Health Monitoring
Voltage +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM)
FAN 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring
Temperature CPU thermal trip support
LED +5V Standby alert LED
Other Features Chassis intrusion header
Parts List ?
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-C9Z390-PGW 1 C9Z390-PGW Motherboard
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-C9Z390-PGW 1 MBD-C9Z390-PGW Motherboard
IO shield MCP-260-00141-0N 1 C9Z390-PGW IO shield
Quick Reference Guide MNL-2030-QRG 1 C9Z390-PGW Quick Reference Guide
SATA cable CBL-0044L 4 57.5CM SATA FLAT S-S PBF
Driver CD 1 C9 Driver CD
Metal badge 1 SuperO metal badge
Cable sticker 1 SuperO cable sticker
WiFi+BT Antenna CBL-ANTDB-SMA 2 C7Z390-PGW WiFi+BT Antenna
Chassis (Optimized for C9Z390-PGW)
Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SCGS5A-754K
SCGS5A-753B
SC732D3-1200B
SC732D3-903B
SC732D4-500B
4U Heatsink:SNK-P0051AP4
