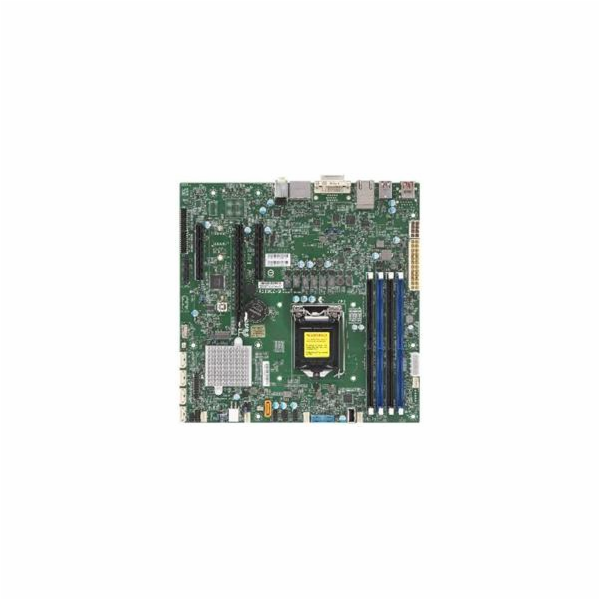

MBD-X11SCZ-Q X11SCZ-Q
Physical Stats
Form Factor uATX
Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache
CPU 8th/9th Generation Intel® Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® Processor.
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
System Memory
Memory Capacity Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type 2666/2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM
DIMM Sizes 4GB, 8GB, 16GB, 32GB
Memory Voltage 1.2V
On-Board Devices
Chipset Intel® Q370
SATA Intel® Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller
Audio ALC 888S HD Audio
Graphics Intel® HD Graphics
3 Independent Displays
Input / Output
LAN 2 RJ45 Gigabit Ethernet LAN ports
USB 7 USB 2.0 ports (6 via headers, 1 Type A)
2 USB 3.1 Gen1 ports(2 via headers)
6 USB 3.1 Gen2 ports (3 Rears Type A + 1 Rear Type C, 2 via headers)
Video Output 1 DVI - I port, 2 DP (DisplayPort) ports,
3 Independent Displays
Serial Port / Header 4 COM Ports (4 headers)
TPM TPM Header & Chip both
Expansion Slots
PCI-E 1 PCI-E 3.0 x16,
2 PCI-E 3.0 x4 (in x8 slot)
M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type AMI UEFI
BIOS Features ACPI 6.1
SMBIOS 3.1
PCI FW 3.0
UEFI 2.6
RTC (Real Time Clock) Wakeup
Management
Software AMT, NMI, SuperDoctor® 5, vPro, Watchdog
Power Configurations +12V DC Power Input
ATX Power connector
ACPI Power Management
PC Health Monitoring
Voltage +1.35V, +1.5V, +1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 5 -fan status
FAN 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Dual Cooling Zone
Temperature Thermal Control for 5 Fan Connectors
LED N/A
Other Features 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, M.2 NGFF connector, RoHS
Operating Environment
Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Parts List ?
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SCZ-Q 1 X11SCZ-Q Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00126-0N 1 Standard I/O Shield for X11SCZ with EMI Gasket
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SCZ-Q 1 X11SCZ-Q Motherboard
QRG MNL-2086-QRG 1 Motherboard Quick Reference Guide
I/O Cables CBL-0044L 5 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00126-0N 1 Standard I/O Shield for X11SCZ with EMI Gasket
Optional Parts List
Name Part Number Qty Description
Serial Port Cable CBL-CUSB-0984 -- Dual Serial Port Breakout Cable 20cm
1U I/O Shield MCP-260-00127-0N -- 1U I/O Shield for X11SCZ with EMI Gasket in SC813 Chassis
1U I/O Shield MCP-260-00128-0B -- 1U I/O Shield for X11SCZ with EMI Gasket in SC510 Chassis
USB3.1 Cable CBL-CUSB-0835 -- Dual USB3.1 Type A Cable with Bracket
Chassis (Optimized for X11SCZ-Q)
Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
#22 SC813MFTQC-350CB2
#22 SC510FT-203B
SC512F-350B1
SC512F-350B1
1U Heatsink:SNK-P0049P
SC731i-300B
SC731i-403B
SC731D-300B
SC732D3-1200B
SC733TQ-668B
2U Heatsink:SNK-P0046A4
SC743AC-1200B-SQ
SC745BAC-R1K28B2
2U Heatsink:SNK-P0046A4
