Product SKUs

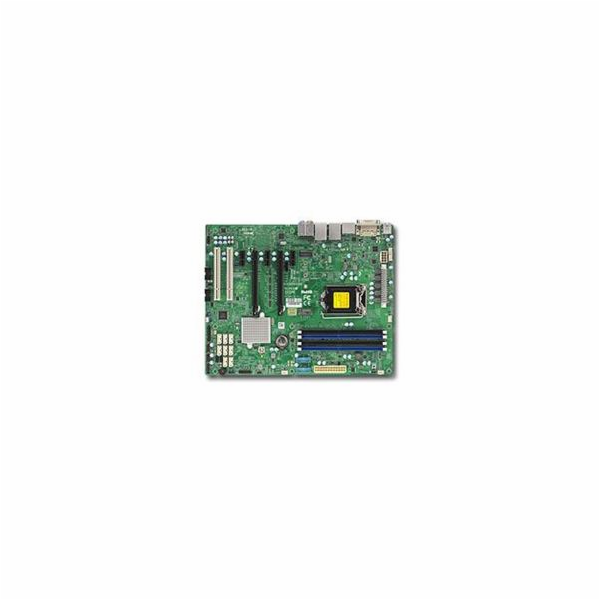

MBD-X11SAE X11SAE
Physical Stats
Form Factor ATX
Dimensions 12" x 9.6" (30.48cm x 24.38cm)
Processor/Cache
CPU Intel® 6th/7th Generation Core? i3 series, Intel® 6th/7th Generation Core? i5 series, Intel® 6th/7th Generation Core? i7 series, Intel® Xeon® processor E3-1200 v6/v5.
Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3
Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core? i3 Processors and Intel® Xeon® Processor E3-1200 v6 series
System Memory
Memory Capacity Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes 4GB, 8GB, 16GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C236
SATA Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
+ 1 PCI-E M.2(PCI-E x4, 2242/2260/2280)(No Raid Support)
Network Controllers Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller
Audio ALC 888S HD Audio
Input / Output
USB 8 USB 2.0 ports (2 rear + 6 via headers)
6 USB 3.1 Gen1 ports(2 rears, 4 Type A)
2 USB 3.1 Gen2 ports , 2 Type A); 2 USB 3.1 Gen 2 ports (2 Rear)
Video Output 1 DVI - D port, 1 DP (DisplayPort) port, 1 HDMI port
Serial Port / Header 2 COM Ports (2 headers)
TPM 1 TPM Header
Expansion Slots
PCI-E 2 PCI-E 3.0 x16,
3 PCI-E 3.0 x1,
***2 PCI-E x16 slots are running at x16/NA or x8/x8 ***
2 PCI,
2 - 5V PCI 32bit
M.2 M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2242/2260/2280
Key: M-Key
System BIOS
BIOS Type AMI UEFI
BIOS Features Plug and Play (PnP)
DMI 2.3
PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 3.0
UEFI 2.3.1
RTC (Real Time Clock) Wakeup
Management
Software AMT, SuperDoctor® 5, vPro, Watchdog
Power Configurations ACPI Power Management
Keyboard Wakeup from Soft-Off
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +12V, +3.3V, +5V, Chassis intrusion header, Monitors CPU voltages, VBAT
FAN 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication
Temperature CPU thermal trip support, I2C temperature sensing logic, PECI, Thermal Monitor 2 (TM2) support
LED CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
Other Features 8-pin 12v DC power connector, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, WOL
Operating Environment
Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
