Product SKUs

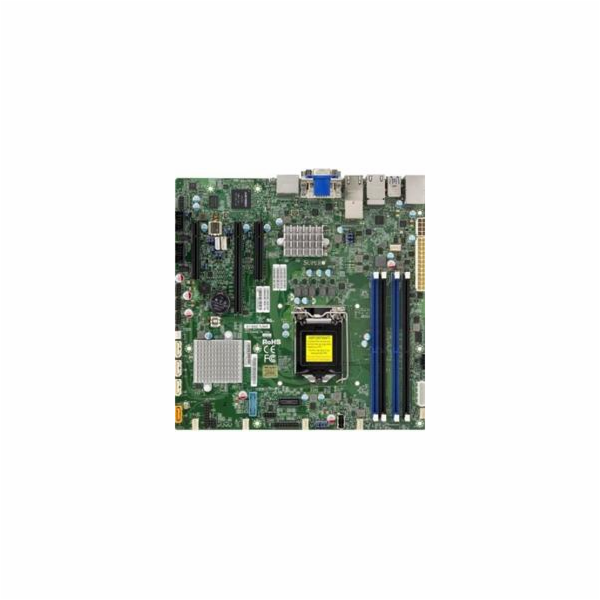

MBD-X11SSZ-F X11SSZ-F
Physical Stats
Form Factor Micro-ATX
Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache
CPU Intel® 6th Generation Core? i3 series
Intel® 6th Generation Core? i5 series
Intel® 6th Generation Core? i7 series
Intel® 7th Generation Core? i3 series
Intel® 7th Generation Core? i5 series
Intel® 7th Generation Core? i7 series
Intel® Celeron®
Intel® Pentium®
Intel® Xeon® processor E3-1200 v5 series
Intel® Xeon® Processor E3-1200 v6 series
Socket H4 (LGA 1151) supported; CPU TDP support Up to 91W
Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core? Processors and Intel® Xeon® Processor E3-1200 v6 series
System Memory
Memory Capacity Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
Memory Type 2400/2133/1866MHz ECC DDR4 SDRAM 72/64-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes 4GB, 8GB, 16GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C236
SATA Intel® C236 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Intel RSTe
Network Controllers Single Intel® PHY I219LM LAN controller
Single Intel® Ethernet Controller I210-AT
Audio ALC 888S HD Audio
Graphics Intel® HD Graphics, Aspeed AST2400 BMC
3 Independent Displays, VGA is from BMC A CPU with processor graphics is required for Intel HD Graphics (DVI/DP). Example: E3-1275 v5
Input / Output
USB 9 USB 2.0 ports (2 rear, 6 via header(s), 1 Type A)
4 USB 3.0 ports (2 rear, 2 via header(s))
Video Output 2 DP (DisplayPort) port(s), 1 DVI - I port(s), 1 VGA port(s)
Serial Port / Header 2 COM Ports (2 header(s))
TPM 1 TPM 2.0 Header
Expansion Slots
PCI-E 1 PCI-E 3.0 x16 (in x16 slot)
2 PCI-E 3.0 x4 (in x8 slot)
System BIOS
BIOS Type AMI UEFI
BIOS Features Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
Hardware BIOS Virus protection
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1
Management
Software AMT
IPMI2.0
KVM with dedicated LAN
NMI
SuperDoctor® 5
vPro
Watchdog
Power Configurations ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 1.2V (VDIMM), 6 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN 6x 4-pin fan headers (up to 6 fans)
6 fans with tachometer status monitoring
Fan speed control
Overheat LED indication
Pulse Width Modulated (PWM) fan connectors
PWM fan speed control
System level control
Thermal control tachometer fan connectors
Temperature Monitoring for CPU and chassis environment
CPU thermal trip support
I2C temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI
LED CPU / System Overheat LED
UID/Remote UID
Other Features 8-pin 12v DC power connector
ACPI power management
ATX Power connector
Chassis intrusion header
Control of power-on for recovery from AC power loss
CPU thermal trip support for processor protection
Intel Smart Response Technology
RoHS
System level control
UID
WOL
Operating Environment
Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range -20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
