Product SKUs

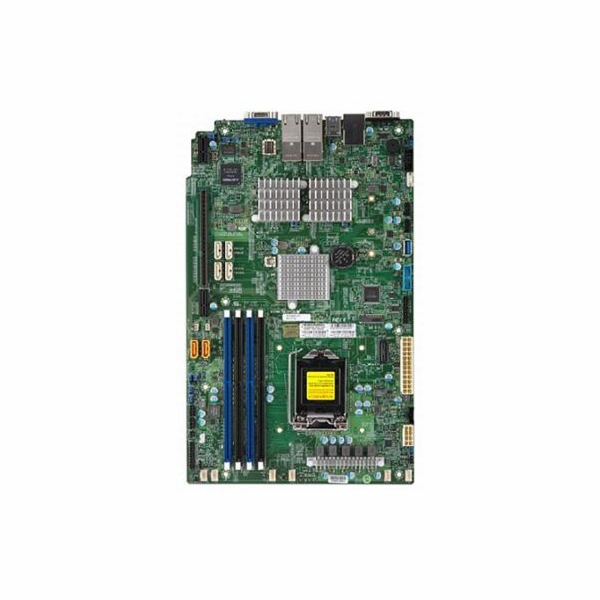

MBD-X11SSW-4TF X11SSW-4TF
Physical Stats
Form Factor Proprietary
Dimensions 8" x 13" (20.32cm x 33.02cm)
Processor/Cache
CPU Intel® 6th/7th Generation Core? i3 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v6/v5.
Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 80W TDP
Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core? i3 Processors and Intel® Xeon® Processor E3-1200 v6 series
System Memory
Memory Capacity 64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes 4GB, 8GB, 16GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset Intel® C236
SATA Intel® C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2400 BMC
Network Controllers Quad LAN with Intel® X540 10GBase-T Ethernet Controller
Graphics Aspeed AST2400 BMC
Input / Output
SATA 6 SATA3 (6Gbps) ports
LAN 4 RJ45 10GBase-T ports
USB 6 USB 2.0 ports (2 rear + 4 headers)
5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output 1 VGA port
Serial Port / Header 2 COM Ports (1 rear, 1 header)
TPM TPM Header
Expansion Slots
PCI-E 1 PCI-E 3.0 x16 Left Riser Slot
M.2 M.2 Interface: PCI-E 3.0 x4
Form Factor: 2260, 2280, 22110
Key: M-Key
Double Height Connector
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features ACPI 1.0 / 2.0 / 3.0 / 4.0
APM 1.2
DMI 2.3
Hardware BIOS Virus protection
PCI 2.3
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
SMBIOS 2.7.1
UEFI 2.3.1
USB Keyboard support
Management
Software Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
Power Configurations ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +12V, +3.3V, +5V, +5V standby, 6 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN 6x 4-pin fan headers (up to 6 fans), Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LED UID/Remote UID, CPU / System Overheat LED
Other Features Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, VHD, WOL
Operating Environment
Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
