Product SKUs

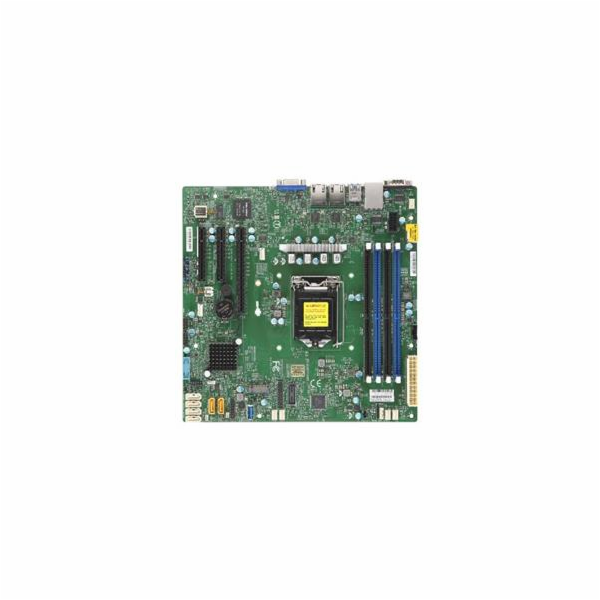

MBD-X11SCL-F X11SCL-F
Physical Stats
Form Factor microATX
Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache
CPU 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
Cores / Cache 6 cores, 12 threads
Note BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core? i3/Pentium®/Celeron® Processors
System Memory
Memory Capacity Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type 2667/2400/2133MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes 4GB, 8GB, 16GB, 32GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset Intel® C242
SATA Intel® C242 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2500
Network Controllers Dual LAN with 1GbE with Intel® I210
Graphics ASPEED AST2500 BMC
Input / Output
USB 6 USB 2.0 ports (2 rear + 4 via headers)
5 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers, 1 Type A)
Video Output 1 VGA port
Serial Port / Header 2 COM Ports (1 rear, 1 header)
TPM 1 TPM Header
Expansion Slots
PCI-E 1 PCI-E 3.0 x8 (in x16 slot),
2 PCI-E 3.0 x4 (in x8 slot)
M.2 M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
Double Height Connector
System BIOS
BIOS Type UEFI 256Mb
BIOS Features ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0
Management
Software IPMI2.0, KVM with dedicated LAN, SSM, SUM, SuperDoctor® 5
Power Configurations ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +12V, +3.3V, +5V, +5V standby, 5 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT
Temperature Thermal Monitor 2 (TM2) support, CPU thermal trip support, PECI, Monitoring for CPU and chassis environment
LED CPU / System Overheat LED, UID/Remote UID
Other Features ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, UID, WOL
Operating Environment
Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Parts List ?
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SCL-F 1 X11SCL-F Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SCL-F with EMI Gasket
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SCL-F 1 X11SCL-F Motherboard
QRG MNL-2063-QRG 1 Motherboard Quick Reference Guide
I/O Cables CBL-0044L 6 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SCL-F with EMI Gasket
Optional Parts List
Name Part Number Qty Description
TPM security module AOM-TPM-9670H 1 SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
TPM security module AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
TPM security module AOM-TPM-9671H 1 SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
TPM security module AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
Chassis (Optimized for X11SCL-F)
Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC813MFTQC-R407CB
SC514-R407C
SC515-R407
SC113MTQ-R400CB
SCLA25TQC-R609LP
SC731i-403B
SC731i-404B
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Server (Optimized for X11SCL-F)
Server Name
SYS-5039C-I
