Product SKUs

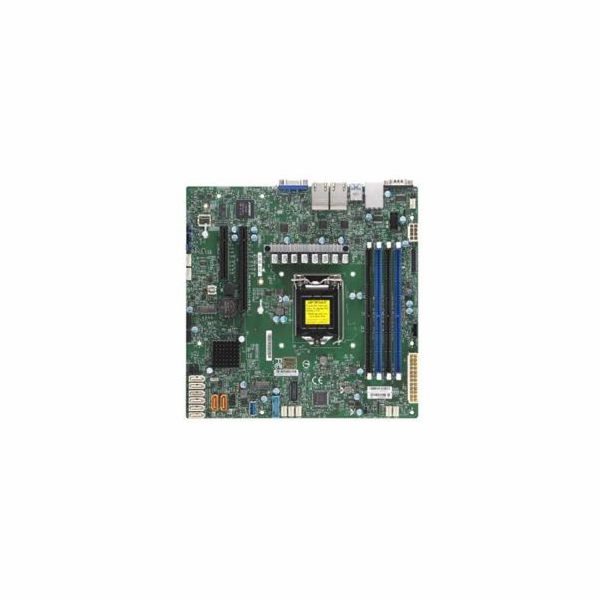

MBD-X11SCH-LN4F X11SCH-LN4F
Physical Stats
Form Factor Micro-ATX
Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache
CPU 8th/9th Generation Intel® Core?i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor.
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
Cores / Cache 8 cores, 16 threads
Note BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core? i3/Pentium®/Celeron® Processors
System Memory
Memory Capacity Up to 128GB DDR4 ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type 2666/2400/2133MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes 4GB, 8GB, 16GB, 32GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset Intel® C246
SATA Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2500
Network Controllers Quad LAN with Intel® Ethernet Controller I210
Graphics Aspeed AST2500 BMC
Input / Output
USB 6x USB 2.0 ports (2 rear, 4 via headers); 2x USB 3.1 Gen2 ports (rear); 3x USB 3.1 Gen1 ports (1 Type-A, 2 via header)
Video Output 1 VGA port
Serial Port / Header 2 COM Ports (1 rear, 1 header)
TPM 1 TPM Header
Expansion Slots
PCI-E 1 PCI-E 3.0 x8 (in x16 slot),
1 PCI-E 3.0 x8
M.2 M.2 Interface: PCI-E 3.0 x4
Form Factor: 2280, 22110
Key: M-Key
Double Height Connector
System BIOS
BIOS Type UEFI 256Mb
BIOS Features ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0
Management
Software Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
Power Configurations ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +12V, +3.3V, +5V, +5V standby, 6 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature N/A
LED CPU / System Overheat LED, UID/Remote UID
Other Features ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, UID, WOL
Operating Environment
Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
