Product SKUs

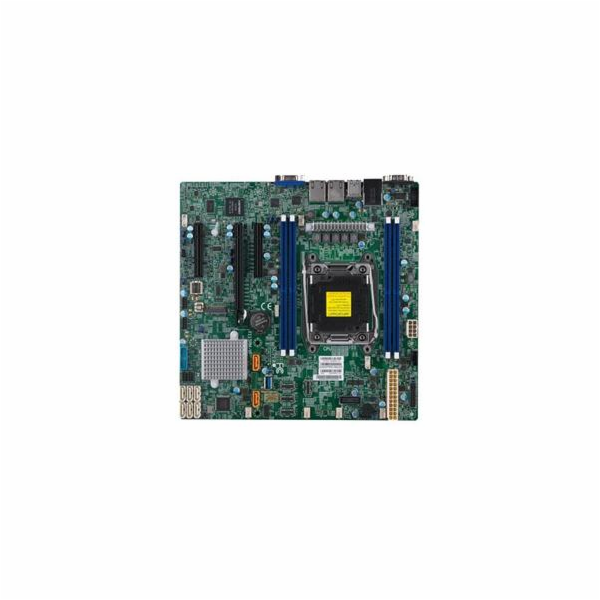

MBD-X11SRM-F X11SRM-F
Physical Stats
Form Factor microATX
Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache
CPU Intel® Xeon® W-2100 Processors, Intel® Xeon® W-2200 Processors
Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP
Cores / Cache 18 cores, 36 threads
Note W-2200 CPU is supported on the motherboards with BIOS 2.0 or newer upon receiving from Supermicro
Note To support 165W W-2200 CPUs, BIOS 2.0 & VRM update by Supermicro are required
System Memory
Memory Capacity Up to 256GB ECC RDIMM, DDR4-2933MHz; Up to 512GB ECC LRDIMM, DDR4-2933MHz, in 4 DIMM slots
Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset Intel® C422
SATA Intel® C422 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2500
Network Controllers Dual LAN with Intel® i210 Gigabit Ethernet Controller
Graphics ASPEED AST2500 BMC
Input / Output
SATA 8 SATA3 (6Gbps) ports
LAN 2 RJ45 Gigabit Ethernet LAN ports
USB 6 USB 2.0 ports (2 rear + 4 via headers)
5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)
Video Output 1 VGA port
Serial Port / Header 2 COM Ports (1 rear, 1 header)
TPM TPM Header
Expansion Slots
PCI-E 1 PCI-E 3.0 x16,
2 PCI-E 3.0 x8
M.2 M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2280
Key: M-Key
Double Height Connector
System BIOS
BIOS Type AMI UEFI
BIOS Features ACPI 6.0
SMBIOS 3.0 or later
Plug and Play (PnP)
Management
Software IPMI2.0, KVM with dedicated LAN, SUM, SuperDoctor® 5, Watchdog
Power Configurations ACPI Power Management
CPU thermal trip support for processor protection
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 -fan status, Chassis intrusion header, HT, Monitors CPU voltages, System temperature, VBAT
Temperature PECI, CPU thermal trip support, Thermal Control for 6 Fan Connectors
LED CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED
Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, RoHS, UID
Operating Environment
Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
Parts List ?
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SRM-F 1 X11SRM-F Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SRM-F with EMI Gasket
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SRM-F 1 X11SRM-F Motherboard
QRG MNL-1967-QRG 1 Motherboard Quick Reference Guide
I/O Cables CBL-0044L 6 57.5 cm SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SRM-F with EMI Gasket
Chassis (Optimized for X11SRM-F)
Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC731i-300B
SC732I-500B
SC732D4-500B
SC733TQ-668B
SC842TQC-668B
