Product SKUs

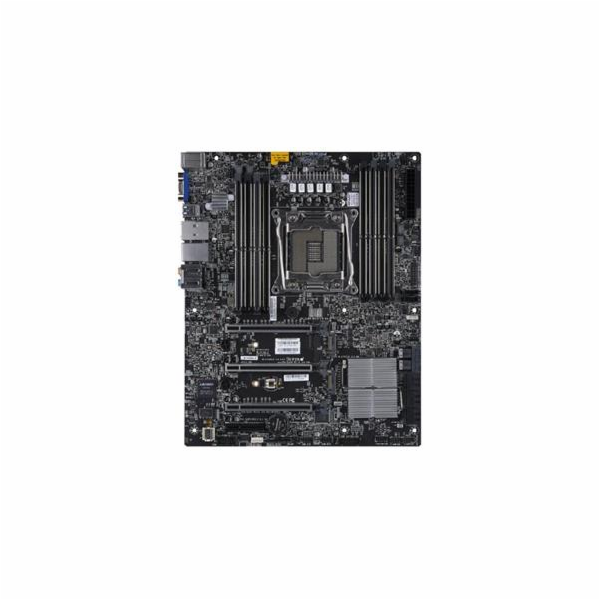

MBD-X11SRA-F X11SRA-F
Physical Stats
Form Factor ATX
Dimensions 12" x 9.6" (30.48cm x 24.38cm)
Processor/Cache
CPU Intel® Xeon® W-2100 Processors, Intel® Xeon® W-2200 Processors
Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP
As Intel® Xeon® Processor W Family
System Memory
Memory Capacity Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM, DDR4-2666MHz, in 8 DIMM slots(DDR4-2933MHz: RDIMM Max. Memory Capacity 256GB Registered ECC, LRDIMM Max. Memory Capacity 512GB Registered ECC)
Memory Type 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage 1.2V
On-Board Devices
Chipset Intel® C422
SATA Intel® C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
*iRST enabled, only SATA2 to SATA5 support RAID.
IPMI ASPEED AST2500
***OOB Bios refresh function is not supported.***
Network Controllers Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Aquantia 5G LAN chip AQC108
Audio ALC 1220 7.1 HD Audio
Graphics ***VGA Port is default set to support IPMI
Input / Output
USB 6 USB 2.0 ports (2 rear + 4 via headers)
6 USB 3.2 Gen1 ports (4 rear + 2 via headers)
2 USB 3.2 Gen2 ports (2 Type A
Video Output 1 VGA port,
***VGA Port is default set to support IPMI
Serial Port / Header 1 COM Port (1 header)
TPM 1 TPM Header
Expansion Slots
PCI-E 3 PCI-E 3.0 x16,
1 PCI-E 3.0 x4
***3xPCI-E3.0 x16 Slots(8/16/16 (Skylake-W 48 lanes), 1xPCI-E3.0x4 slots***
M.2 M.2 Interface: 2 PCI-E 3.0 x4
Form Factor: 22110
Key: M-Key (RAID 0,1 support)
*M-Key for SSD and Optane(up to Intel POR). Intel VROC license kit is needed to enable RAID.
System BIOS
BIOS Type UEFI 256Mb
Management
Software IPMI2.0, SuperDoctor® 5, Watchdog
PC Health Monitoring
Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 5 (4-pin), Chassis intrusion header, Monitors CPU voltages, Monitors for CPU Cores, System temperature, VBAT
FAN 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, PWM fan speed control
Temperature CPU thermal trip support, Monitoring for CPU and chassis environment, PECI, Support to monitor Supermicro AOC temperatures from IPMI or SD 5
LED CPU / System Overheat LED
Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, RoHS, Voltage and Frequency Overclocking, WOL
Operating Environment
Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range -20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
Parts List ?
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SRA-F 1 X11SRA-F Motherboard
SATA cable CBL-0044L 2 SATA cable
IO shield MCP-260-00118-0N 1 X11SRA series IO shield
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SRA-F 1 X11SRA-F Motherboard
SATA cable CBL-0044L 6 SATA cable
IO shield MCP-260-00118-0N 1 X11SRA series IO shield
Quick Reference Guide MNL-2005-QRG 1 X11SRA series Quick Reference Guide
Giftbox Box-0121 1 Giftbox
Giftbox foam BOX-019 1 Giftbox foam
Optional Parts List
Name Part Number Qty Description
TPM security module (optional, not included) AOM-TPM-9671V 1 TPM for X11SRA-F
TPM security module (optional, not included) AOM-TPM-9671H 1 TPM for X11SRA-F
TPM security module (optional, not included) AOM-TPM-9671V-S 1 TPM for X11SRA-F
TPM security module (optional, not included) AOM-TPM-9671H-S 1 TPM for X11SRA-F
TPM security module (optional, not included) AOM-TPM-9670V 1 TPM for X11SRA-F
TPM security module (optional, not included) AOM-TPM-9670H 1 TPM for X11SRA-F
TPM security module (optional, not included) AOM-TPM-9670V-S 1 TPM for X11SRA-F
TPM security module (optional, not included) AOM-TPM-9670H-S 1 TPM for X11SRA-F
Chassis (Optimized for X11SRA-F)
Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC732D3-903B
SC732D3-1200B
SCGS5A-753K
SCGS5A-753R
SC743AC-668B
SC743AC-1200B-SQ
SC743TQ-865B-SQ
SC745BAC-R1K28B2
