Product SKUs

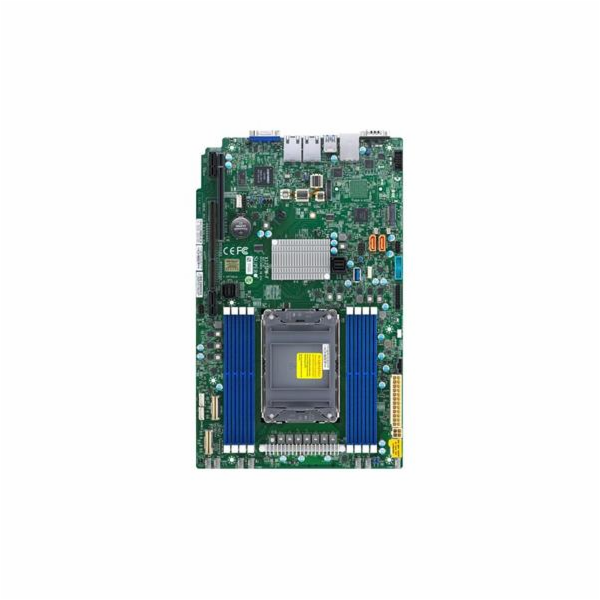

MBD-X12SPW-F X12SPW-F
Physical Stats
Form Factor Proprietary WIO
Dimensions 8" x 13" (20.32cm x 33.02cm)
Processor/Cache
CPU 3rd Gen Intel® Xeon® Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Cores / Cache Up to 40 cores
System Memory
Memory Capacity Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
Memory Type N/A
DIMM Sizes RDIMM: 8GB, 16GB, 32GB, 64GB
LRDIMM: 64GB, 128GB
3DS LRDIMM: 128GB, 256GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset Intel® C621A
SATA Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2600 BMC
Network Controllers Dual LAN with 1GbE with Intel® I210
Graphics ASPEED AST2600 BMC
Input / Output
SATA 10 SATA3 (6Gbps) ports
LAN 2 RJ45 Gigabit Ethernet LAN ports
USB 4 USB 2.0 ports (2 rear + 2 via headers)
5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)
Video Output 1 VGA port
Serial Port / Header 2 COM Ports (1 rear, 1 header)
TPM TPM Header
Expansion Slots
PCI-E 1 PCI-E 4.0 x16 Right Riser Slot,
1 PCI-E 4.0 x32 Left Riser Slot
M.2 M.2 Interface: PCI-E 3.0 x4 and SATA
Form Factor: 2280, 22110
Key: M-Key
System BIOS
BIOS Type AMI UEFI
BIOS Features ACPI 6.0
RTC (Real Time Clock) Wakeup
SMBIOS 3.0 or later
Management
Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
Power Configurations ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, Supports system management utility, VBAT
Temperature CPU thermal trip support, PECI
LED CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED
Other Features ACPI power management, Control of power-on for recovery from AC power loss, RoHS, UID, WOL
Operating Environment
Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Parts List ?
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X12SPW-F 1 X12SPW-F Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X12SPW-F 1 X12SPW-F Motherboard
I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF
QRG MNL-2246-QRG 1 Motherboard Quick Reference Guide
Optional Parts List
Name Part Number Qty Description
TPM security module AOM-TPM-9670H 1 SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
TPM security module AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
TPM security module AOM-TPM-9671H 1 SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
TPM security module AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
Chassis (Optimized for X12SPW-F)
Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC116AC10-R706WB3
SC815TQC4-605WB2
SC815TQC4-R504WB3
SCLA15TQC-R504W
SCLA15TQC-563W
SCLB16AC2-R504W
SC825BTQC-R609WB
