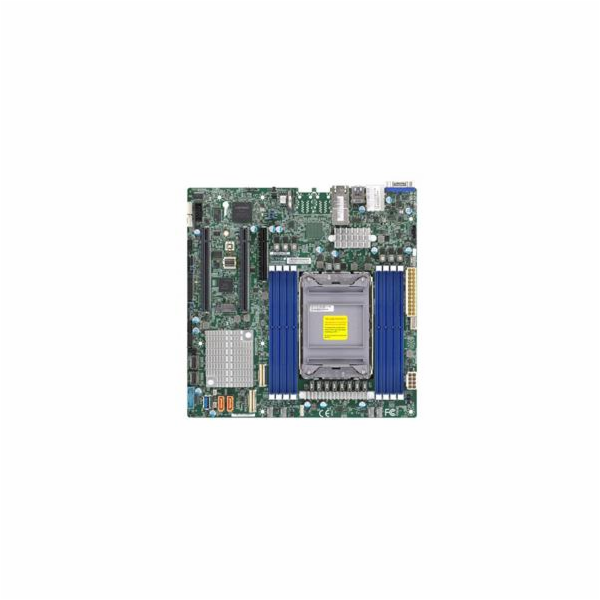

MBD-X12SPM-TF X12SPM-TF
Physical Stats
Form Factor microATX
Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache
CPU 3rd Gen Intel® Xeon® Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Cores / Cache Up to 40 cores
System Memory
Memory Capacity Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
Memory Type N/A
DIMM Sizes RDIMM: 8GB, 16GB, 32GB, 64GB
LRDIMM: 64GB, 128GB
3DS LRDIMM: 128GB, 256GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset Intel® C621A
SATA Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2600 BMC
Network Controllers Dual LAN with 10GBase-T with Intel® X550
Graphics ASPEED AST2600 BMC
Input / Output
SATA 10 SATA3 (6Gbps) port
LAN 2 RJ45 10GBase-T ports
USB 6 USB 2.0 ports (2 rear + 4 via headers)
5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)
Video Output 1 VGA port
Serial Port / Header 1 COM Port (1 header)
TPM TPM Header
Expansion Slots
PCI-E 1 PCI-E 4.0 x8,
2 PCI-E 4.0 x16
M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2280, 22110
Key: M-Key
System BIOS
BIOS Type AMI UEFI
BIOS Features ACPI 6.0
RTC (Real Time Clock) Wakeup
SMBIOS 3.0 or later
Management
Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
Power Configurations ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 5 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, VBAT
Temperature CPU thermal trip support, PECI
LED CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED
Other Features ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL
Operating Environment
Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range -20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
