Product SKUs

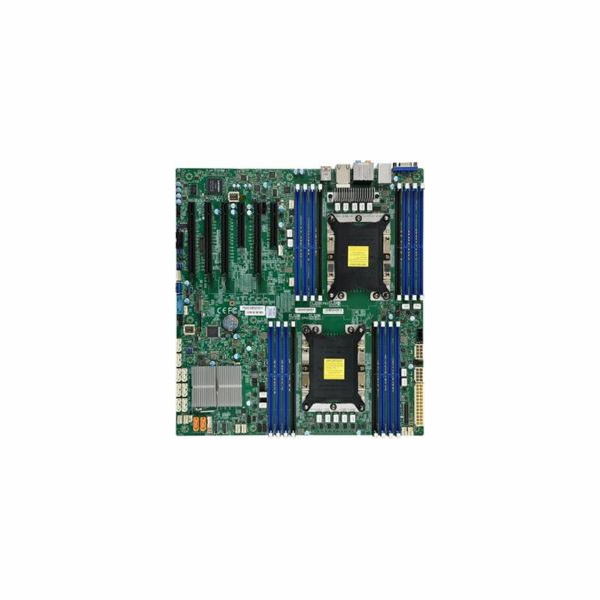

MBD-X11DAi-N X11DAi-N
Physical Stats
Form Factor E-ATX
Dimensions 12" x 13" (30.48cm x 33.02cm)
Processor/Cache
CPU 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
System Memory
Memory Capacity Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).
Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes RDIMM: 64GB, 128GB
LRDIMM: 64GB, 128GB
3DS LRDIMM: 128GB, 256GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C621
SATA Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2500
Network Controllers Dual LAN with GbE from C621
Audio 7.1 HD Audio
Graphics Aspeed AST2500 BMC
Input / Output
USB 7 USB 3.2 Gen1 ports (4 rear + 2 via headers + 1 Type A)2 USB 3.2 Gen2 ports (2 rears (1 Rear Type A + 1 Rear Type C)
Video Output 1 VGA port
Serial Port / Header 1 COM Port (1 header)
TPM 1 TPM Header
Expansion Slots
PCI-E 4 PCI-E 3.0 x16,
2 PCI-E 3.0 x8
M.2 M.2 Interface: PCI-E 3.0 x4
Form Factor: 2260, 2280, 22110
Key: M-Key
System BIOS
BIOS Type AMI 32Mb SPI Flash ROM
Management
Software Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
PC Health Monitoring
Voltage +12V, +3.3V, +5V, +5V standby, Memory Voltages, Monitors CPU voltages
FAN 7x 4-pin fan headers (up to 7 fans), 7 fans with tachometer status monitoring, PWM fan speed control, Status monitoring for speed control
Temperature CPU thermal trip support, Monitoring for CPU and chassis environment
LED CPU / System Overheat LED, Suspend static indicator LED, BMC/IPMI Heartbeat LED, Power LED
Other Features Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS
Operating Environment
Operating Temperature Range 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
