Product SKUs

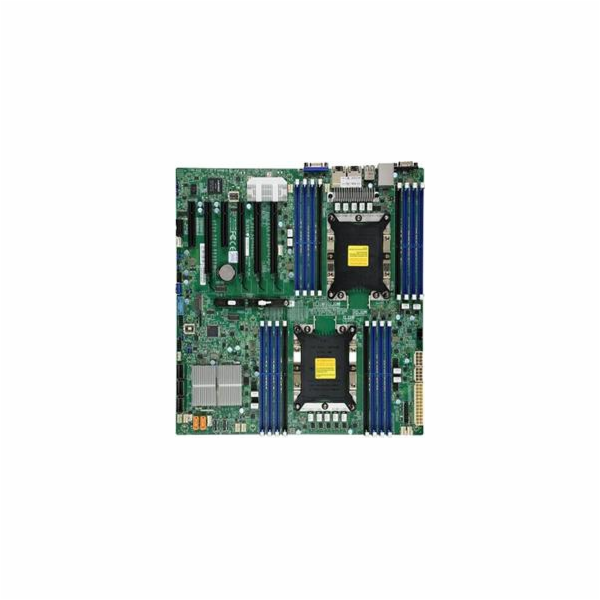

MBD-X11DPi-N X11DPi-N
Physical Stats
Form Factor E-ATX
Dimensions 12" x 13" (30.48cm x 33.02cm)
Processor/Cache
CPU 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
Cores / Cache Up to 28 cores
Note BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
System Memory
Memory Capacity Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);
Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes RDIMM: 64GB
LRDIMM: 128GB
3DS LRDIMM: 256GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C621
SATA Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2500
Network Controllers Dual LAN with 1GbE LAN with Intel® X722
Graphics ASPEED AST2500 BMC
Input / Output
SATA 14 SATA3 (6Gbps) port
LAN 2 RJ45 Gigabit Ethernet LAN ports
USB 4 USB 2.0 ports (2 rear + 2 via headers)
5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)
Video Output 1 VGA port
Serial Port / Header 2 COM Ports (1 rear, 1 header)
TPM 1 TPM Header
Expansion Slots
PCI-E 4 PCI-E 3.0 x16,
2 PCI-E 3.0 x8
M.2 M.2 Interface: PCI-E 3.0 x4
Form Factor: 2260, 2280, 22110
Key: M-Key
System BIOS
BIOS Type AMI UEFI
Management
Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
PC Health Monitoring
Voltage +12V, +3.3V, +5V, +5V standby, 3.3V standby, Monitors CPU voltages
FAN 8x 4-pin fan headers (up to 8 fans), PWM fan speed control
Temperature CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
LED CPU / System Overheat LED, UID/Remote UID, BMC/IPMI Heartbeat LED, Power LED
Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, NCSI header, Node Manager Support, RoHS, SDDC, UID
Operating Environment
Operating Temperature Range 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11DPi-N 1 X11DPi-N Motherboard
I/O Shield MCP-260-00042-0N 1 STD I/O SHIELD
I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF
Parts List (Retail Package)
Name Part Number Qty Description
X11DPi-N MBD-X11DPi-N 1 Motherboard
I/O Shield MCP-260-00042-0N 1 STD I/O SHIELD
I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF
I/O Cables CBL-0476L 1 IPASS to 4 SATA cable
Optional Parts List
Name Part Number Qty Description
TPM security module (optional, not included) AOM-TPM-9670V-S SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
TPM security module (optional, not included) AOM-TPM-9671V-S SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
Chassis (Optimized for X11DPi-N)
Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC213AC-R1K23LPB
SC825TQC-R1K03LPB
SCLA25TQC-R609LP
SC825TQC-R802LPB
SC835TQC-R802B
SC835TQC-R1K03B
SC745BAC-R1K28B2
SC842TQC-865B
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Server (Optimized for X11DPi-N)
Server Name
SYS-6029P-TR
SYS-7049P-TR
SYS-2029P-C1R
