Product SKUs

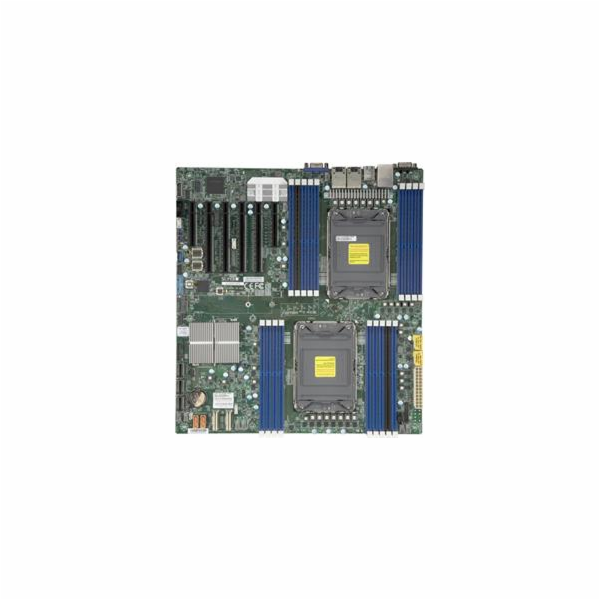

MBD-X12DPi-NT6 X12DPi-NT6
Physical Stats
Form Factor E-ATX
Dimensions 12`" x 13" (30.48cm x 33.02cm)
Processor/Cache
CPU 3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Cores / Cache Up to 40 cores
System Memory
Memory Capacity Up to 4TB RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slotsP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 series only.
Memory Type 3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes RDIMM: 256GB
LRDIMM: 256GB
3DS LRDIMM: 256GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C621A
SATA Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2600 BMC
Network Controllers Dual LAN with 10GBase-T with Intel® X550
Input / Output
SATA 14 SATA3 (6Gbps) ports
LAN 2 RJ45 10 Gigabit Ethernet LAN ports
USB 2 USB 2.0 ports (2 via headers)
7 USB 3.2 Gen1 ports (4 rear + 2 via headers + 1 Type A)
Video Output 2 VGA (1 rear bezel, 1 front panel) ports
Serial Port / Header 2 COM Ports (1 rear, 1 header)
TPM 1 TPM Header
Expansion Slots
PCI-E 2 PCI-E 4.0 x8,
4 PCI-E 4.0 x16
M.2 M.2 Interface: 1 PCI-E 4.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type AMI UEFI
Management
Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
PC Health Monitoring
Voltage +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, CPU temperature, LAN temperature, Memory temperature, Memory Voltages, Monitors CPU voltages, PCH temperature, System temperature, VBAT, VRM temperature
Temperature N/A
LED BMC/IPMI Heartbeat LED, Power LED, UID/Remote UID
Other Features ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, NCSI header, Node Manager Support, RoHS, SDDC, UID, WOL
Operating Environment
Operating Temperature Range 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
