Product SKUs

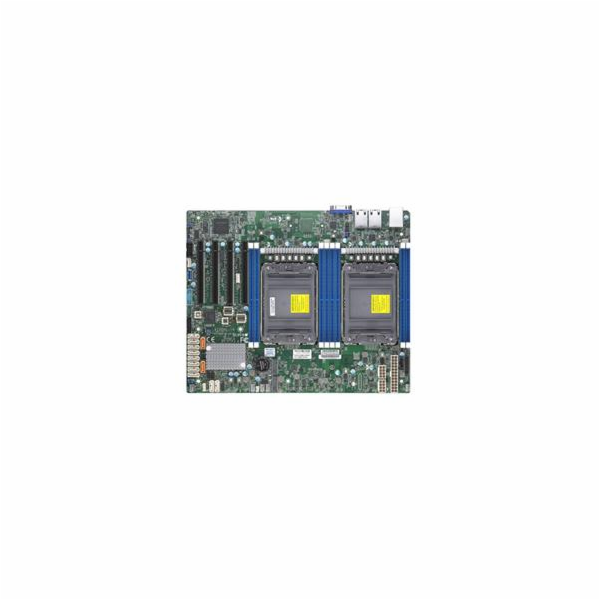

MBD-X12DPL-i6 X12DPL-i6
Physical Stats
Form Factor ATX
Dimensions 12.23" x 10" (31.06cm x 25.4cm)
Processor/Cache
CPU 3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, 2 UPI up to 10.4 GT/s
System Memory
Memory Capacity Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz, in 8 DIMM slots
Memory Type 3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes 256GBRDIMM: 256GB
LRDIMM: 256GB
3DS LRDIMM: 256GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C621A
SATA Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2600 BMC
Network Controllers Dual LAN with Intel® i210 Gigabit Ethernet Controller
Graphics ASPEED AST2600 BMC
Input / Output
LAN 2 RJ45 Gigabit Ethernet LAN ports
USB 5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)
Video Output 1 VGA port
Serial Port / Header 1 COM Port (1 header)
TPM 1 TPM Header
Expansion Slots
PCI-E 4 PCI-E 4.0 x16
M.2 M.2 Interface: 2 PCI-E 4.0 x4
Form Factor: 2280/22110, 2280
Key: M-Key
System BIOS
BIOS Type AMI UEFI
Management
Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
System Management Software IPMICFG
SMCIPMITool
IPMIView for Linux/Windows
Power Configurations ACPI Power Management
PC Health Monitoring
Voltage +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility
Temperature CPU thermal trip support, PECI
LED BMC/IPMI Heartbeat LED, UID/Remote UID
Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, NCSI header, Node Manager Support, RoT, UID
Operating Environment
Operating Temperature Range 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
