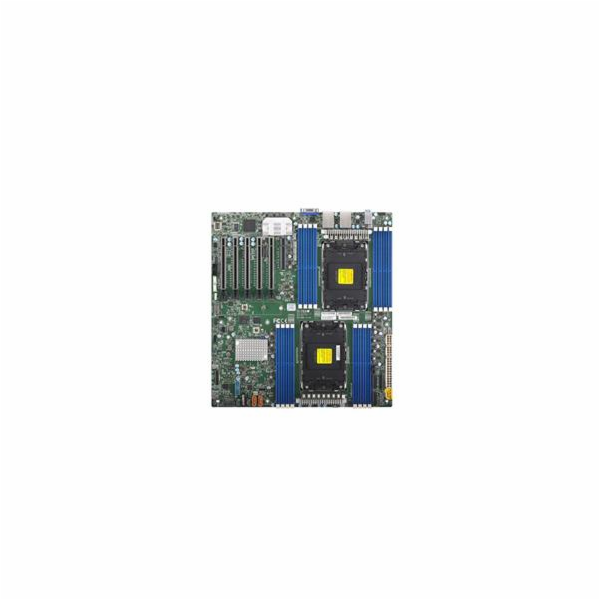

SUPERMICRO MB 2xLGA4677, C741, 16x DDR5 ECC, 4x NVMe, 8+2sata 2x M.2, 6x PCIe5.0, 2x 10Gb LAN,IPMI

Product SKUs


MBD-X13DAI-T







Physical Stats


Form Factor


EATX




Dimension


12.1" x 13.1" (30.734cm x 33.274cm)









Processor


CPU


5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP




Core


Up to 64 cores









System Memory


Memory Capacity


16 DIMM slots
Up to 4TB 3DS ECC RDIMM, DDR5-5600MHz




Memory Type


5600/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) 256GB 5600MT/s




DIMM Sizes


16GB, 32GB, 64GB, 96GB, 128GB, 256GB
RDIMM: Up to 256GB




Memory Voltage


1.1V




Error Detection


Detects double-bit errors (using ECC memory)









On-Board Devices


Chipset


Intel® C741




SATA


8 SATA3 ports; RAID 0, 1, 5, 10
2 SATA3 ports; RAID 0,1




Network Controllers


Dual LAN with Broadcom BCM57416 10GBase-T









Input / Output


USB


6 USB 3 port(s) (2 headers; 4 rear type A)
2 USB 2 port(s) (2 headers)
1 USB 3.1 Gen2 port(s) (1 headers)




Video Output


1 VGA D-Sub Connector port(s)




Serial Port


2 COM Port(s) (1 header; 1 rear)




TPM


1 TPM Header











Standard Parts (Bulk Package)



Part Number
Qty
Description


CPU carrier
SKT-1333L-0000-FXC
SKT-1424L-001B-LTS
2
2
CPU carrier for 4th Gen Intel® Xeon® Scalable processors (XCC)
CPU carrier for 4th Gen Intel® Xeon® Scalable processors (MCC)


I/O Shield
MCP-260-00181-0B
1
-


SATA cable
CBL-0044L  •
2
57.5 cm SATA FLAT S-S PBF











Standard Parts (Retail Package)



Part Number
Qty
Description


CPU carrier
SKT-1333L-0000-FXC
SKT-1424L-001B-LTS
2
2
CPU carrier for 4th Gen Intel® Xeon® Scalable processors (XCC)
CPU carrier for 4th Gen Intel® Xeon® Scalable processors (MCC)


I/O Shield
MCP-260-00181-0B
1
-


QRG
MNL-2569-QRG
1
Motherboard Quick Reference Guide


SATA cable
CBL-0044L  •
2
57.5 cm SATA FLAT S-S PBF











Optional Parts



Part Number
Qty
Description


TPM security module (optional, not included)
AOM-TPM-9670V
AOM-TPM-9672V
1
1
SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
SPI capable TPM 2.0 with Infineon 9672 controller with vertical form factor
