Key Features
4th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4677 (Socket E) , CPU TDP supports up to 350W TDP
Support CXL
Intel® C741 Chipset
Up to 4TB 3DS ECC RDIMM, DDR5-4800MT/s(1DPC) in 16 DIMM slots
4 PCIe 5.0 x16
2 PCIe 5.0 x8
Broadcom BCM5720 Dual ports 1G LAN
6 USB3.0 and 3 USB2.0
2 SATA DOM ports
2 M.2
6 NVMe ports PCIe 5.0 x4 via 3 MCIO connectors
8 SATA3.0 ports
Product SKUs

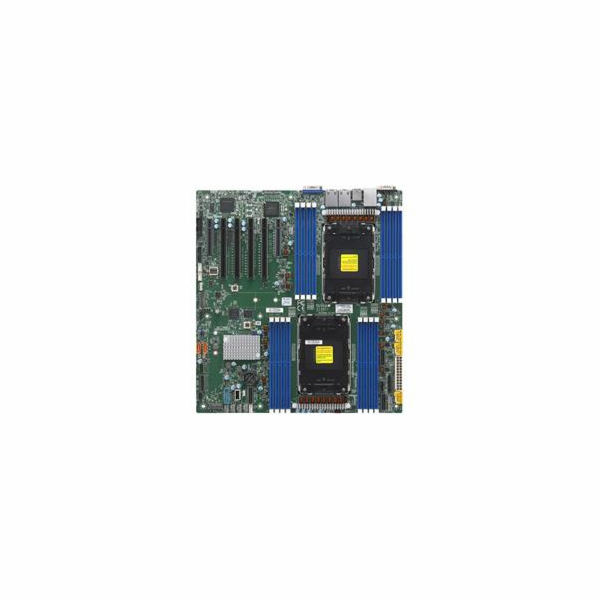

MBD-X13DEI
Physical Stats
Form Factor
EATX
Dimension
12.1" x 13.05" (30.74cm x 33.15cm)
Processor
CPU
4th Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
Core
Up to 60 cores
System Memory
Memory Capacity
16 DIMM slots
Up to 4TB 3DS ECC RDIMM, DDR5-4800MHz
Memory Type
4800/4400/4000MHz ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MT/s (1DPC)
DIMM Sizes
16GB, 32GB, 64GB, 128GB, 256GB
RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
Intel® C741
SATA
Intel® C741 controller for 8 SATA3 ports
Intel® C741 controller for 2 SATA3 ports
IPMI
ASPEED AST2600 BMC
Network Controllers
Dual LAN with Broadcom BCM5720 1GBase-T
Single LAN with Realtek RTL8211F PHY
Input / Output
SATA
8 SATA3 (6Gbps) port(s)
2 SATA3 (6Gbps) port(s)
USB
6 USB 3.2 Gen1 port(s) (2 via header; 4 rear)
3 USB 2 port(s) (1 Type A; 2 via header)
Video Output
1 VGA D-Sub Connector port(s)
Serial Port
2 COM Port(s) (1 header; 1 rear)
TPM
1 TPM header
Others
3 MCIO PCIe 5.0 x8
Expansion Slots
PCIe
2 PCIe 5.0 x8,
4 PCIe 5.0 x16
M.2
M.2 Interface: 2 PCIe 4.0 x2
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
AMI 32MB AMI UEFI
BIOS Features
ACPI 6.4
SMBIOS 2.8/3.5
UEFI 2.8A
Plug and Play (PnP)
PCI FW 3.2
Management
Software
SuperDoctor® 5, SPM, SUM, SSM, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, Watchdog, SMCIPMITool, Trusted Platform Module (TPM), CPU thermal trip support for processor protection, Wake-on-LAN
PC Health Monitoring
Voltage
System temperature, PCH temperature, Memory temperature, CPU temperature, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +3.3V standby, Veore, Vmem, Peripheral temperature, Platform Environment Control Interface (PECI)/(TSI)
LED
UID/Remote UID
CPU / System Overheat LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI
FAN
8x 4-pin fan headers (up to 8 fans)
Fan speed control
Overheat LED indication
8x fans with tachometer monitoring
Other Features
UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
Operating Environment
Operating Temperature Range
10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
