Key Features
10th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor
Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP
Single LAN with Intel® PHY I219LM LAN controller
Single LAN with Intel® Ethernet Controller I210-AT
Intel® Q470
Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x4 (in x8 slot),
1 PCI-E 3.0 x4
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230
Intel® Q470 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port
Specifications
Product SKUs

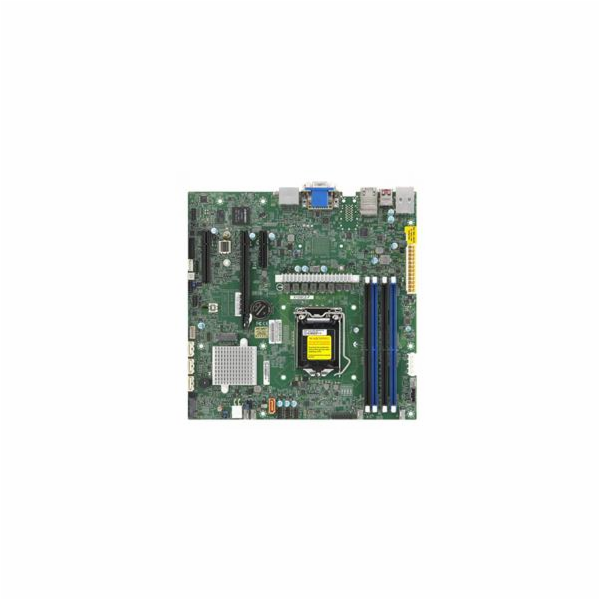

MBD-X12SCZ-QF
X12SCZ-QF
Physical Stats
Form Factor
microATX
Dimension
9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
A graphic integrated CPU is required to have onboard video from the DVI and DP ports
Core
Up to 10 cores
Note
** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz
Memory Type
2933/2666/2400/2133MHz
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
On-Board Devices
Chipset
Intel® Q470
SATA
Intel® Q470E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2500 BMC
Audio
ALC 888S HD Audio
Graphics
Intel® HD Graphics
ASPEED AST2500 BMC
Network Controllers
Single LAN with Intel® PHY I219LM LAN controller
Single LAN with Intel® Ethernet Controller I210-AT
Input / Output
SATA
4 SATA3 (6Gbps) port(s)
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
6 USB 3.1 Gen2 port(s) (2 via header; 4 rear type A)
6 USB 3.2 Gen2 port(s) (4 rear type A; 2 via header)
6 USB 2.0 port(s) (6 via header)
Video Output
1 DVI - D port(s), 1 VGA D-Sub Connector port(s), 2 DP++(Dual-Mode DisplayPort) port(s)
Serial Port
1 COM Port(s) (1 header)
DOM
1 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header & Chip both
Expansion Slots
PCI-E
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x4,
1 PCI-E 3.0 x4 (in x8 slot)
M.2
M.2 Interface: 1 SATA/PCI-E 3.0 x4; 1 CNVi/PCI-E 3.0 x1
Form Factor: 2280/22110, 2230
Key: M-Key, E-Key
System BIOS
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.1
SMBIOS 3.1
PCI FW 3.0
UEFI 2.6
RTC (Real Time Clock) Wakeup
Management
Software
SuperDoctor® 5, SUM , AMT, vPro, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
ACPI Power Management, ATX Power connector, +12V DC Power Input
PC Health Monitoring
Voltage
VBAT, Memory, CPU, Chassis intrusion header, 5 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
LED
UID/Remote UID
Power LED
BMC/IPMI Heartbeat LED
Temperature
Thermal Control for 5 Fan Connectors
FAN
5x 4-pin fan headers (up to 5 fans)
Fan speed control
Dual Cooling Zone
5 fans with tachometer status monitoring
Other Features
UID
RoHS
M.2 NGFF connector
Dual Cooling Zones
Chassis intrusion header
ATX Power connector
ACPI power management
8-pin 12v DC power connector
12V DC or ATX Power Source
