Popis produktu

Key Features


4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
Intel C741® Chipset
Up to 2TB 3DS ECC RDIMM, DDR5-4800MT/s (1DPC) in 8 DIMM slots
1 PCIe 5.0 x8 ( in x16)
1 PCIe 5.0 x32
M.2 Interface:  1 PCIe 3.0 x2
M.2 Form Factor:  2280, 22110
M.2 Key:  M-Key
10 NVMe ports PCIe 5.0 x8 via 5 MCIO connectors
Dual LAN with 10GBase-T with Intel® X550
2 SuperDOM with built-in power
I/O: 1 VGA, 2 COM, 1 TPM header
4 USB 3.2 Gen1 (2 rear, 2 via header), 3 USB 2.0 (2 rear, 1 via Type-A)
Intel® C741 controller for 10 SATA3 (6 Gbps) ports




















Product SKUs


MBD-X13SEW-TF







Physical Stats


Form Factor


Proprietary WIO




Dimension


8" x 13" (20.32cm x 33.02cm)









Processor


CPU


4th Gen Intel® Xeon® Scalable processors
Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP




Core


Up to 60 cores









System Memory


Memory Capacity


8 DIMM slots
Up to 2TB 3DS ECC RDIMM, DDR5-4800MHz




Memory Type


4800/4400/4000MHz ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MT/s (1DPC)




DIMM Sizes


16GB, 32GB, 64GB, 128GB, 256GB
RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB




Memory Voltage


1.1V




Error Detection


Corrects single-bit errors









On-Board Devices


Chipset


Intel® C741




SATA


Intel® C741 controller for 10 SATA3 (6 Gbps) ports




IPMI


ASPEED AST2600 BMC




Graphics


1 Aspeed AST2600 BMC port(s)




Network Controllers


Dual LAN with 10GBase-T with Intel® X550









Input / Output


SATA


10 SATA3 (6Gbps) port(s)




LAN


2 RJ45 10 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port




USB


5 USB 2 port(s) (2 via header; 2 rear; 1 Type A)
4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)




Video Output


1 VGA D-Sub Connector port(s)




Serial Port


2 COM Port(s) (1 header; 1 rear)




DOM


2 SATA  DOM  (Disk on Module) power connector support




TPM


1 TPM Header























Expansion Slots


PCIe


1 PCIe 5.0 x8 Right Riser (in x16) slot,
1 PCIe 5.0 x32 Left Riser Slot,
5 PCIe 5.0 x8 PCIe5.0 MCIO connector




M.2


M.2 Interface: 1 PCIe 3.0 x2
Form Factor: 2280/22110
Key: M-Key









System BIOS


BIOS Type


AMI UEFI




BIOS Features


ACPI 6.4
SMBIOS 3.5 or later
UEFI 2.8









Management


Software


SuperDoctor® 5, SPM, SUM, SSM, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, Trusted Platform Module (TPM), Chasis Intrusion Detection









PC Health Monitoring


Voltage


VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages




LED


UID/Remote UID
CPU / System Overheat LED




Temperature


Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI




FAN


6x 4-pin fan headers (up to 6 fans)
Fan speed control
6 fans with tachometer status monitoring
Overheat LED indication




Other Features


WOL, UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management

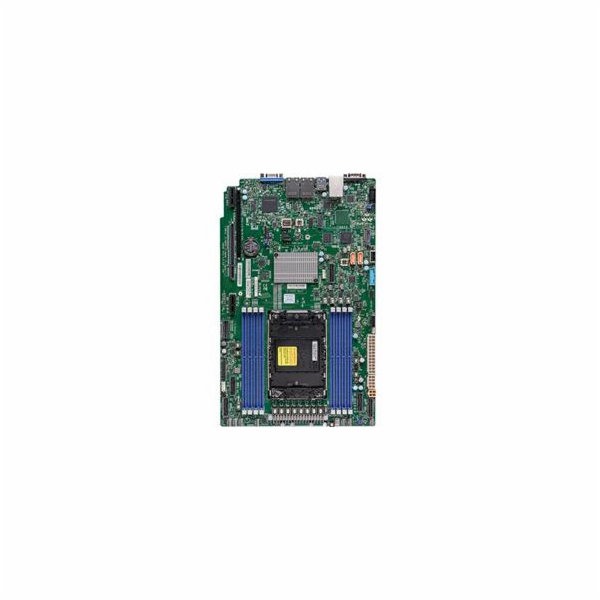

X13SEW-TF






















---
