Key Features
4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
Intel C741® Chipset
Up to 2TB 3DS ECC RDIMM, DDR5-4800MT/s (1DPC) in 8 DIMM slots
8 NVMe ports PCIe 5.0 x4 via 4 MCIO connectors
1 PCIe 5.0 x8,
2 PCIe 5.0 x16,
4 PCIe 5.0 x8 MCIO connectors
M.2 Interface: 2 PCIe 4.0 x2
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key
Dual LAN with 10GBase-T with Intel® X550
5 USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
Intel® C741 controller for 10 SATA3 (6 Gbps) ports or 2 PCIe 3.0 x4 NVMe + 2 SATA3 ports
Product SKUs

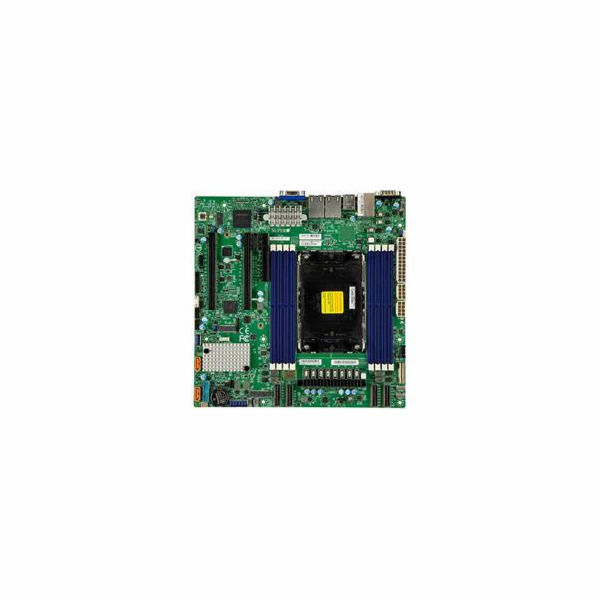

MBD-X13SEM-TF
Physical Stats
Form Factor
microATX
Dimension
9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
4th Gen Intel® Xeon® Scalable processors
Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
Core
Up to 60 cores
System Memory
Memory Capacity
8 DIMM slots
Up to 2TB 3DS ECC RDIMM, DDR5-4800MHz
Memory Type
4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MT/s (1DPC)
DIMM Sizes
16GB, 32GB, 64GB, 128GB, 256GB
RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel® C741
SATA
Intel® C741 controller for 10 SATA3 (6 Gbps) ports
IPMI
ASPEED AST2600 BMC
Graphics
1 Aspeed AST2600 BMC port(s)
Network Controllers
Dual LAN with 10GBase-T with Intel® X550
Input / Output
SATA
10 SATA3 (6Gbps) port(s)
LAN
2 RJ45 10 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
6 USB 2 port(s) (2 rear; 4 via header)
5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output
1 VGA D-Sub Connector port(s)
Serial Port
1 COM Port(s) (1 rear)
DOM
2 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header
Expansion Slots
PCIe
2 PCIe 5.0 x16,
1 PCIe 5.0 x8,
4 PCIe 5.0 x8 MCIO connector
M.2
M.2 Interface: 2 PCIe 4.0 x2
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.4
SMBIOS 3.5 or later
UEFI 2.8
Management
Software
SuperDoctor® 5, SPM, SUM, SSM, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, Trusted Platform Module (TPM), Chassis Intrusion Detection
PC Health Monitoring
Voltage
VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 5 -fan status, +5V standby, +5V, +3.3V, +12V
LED
UID/Remote UID
CPU / System Overheat LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI
FAN
5x 4-pin fan headers (up to 5 fans)
Fan speed control
5 fans with tachometer status monitoring
Overheat LED indication
Other Features
WOL, UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
