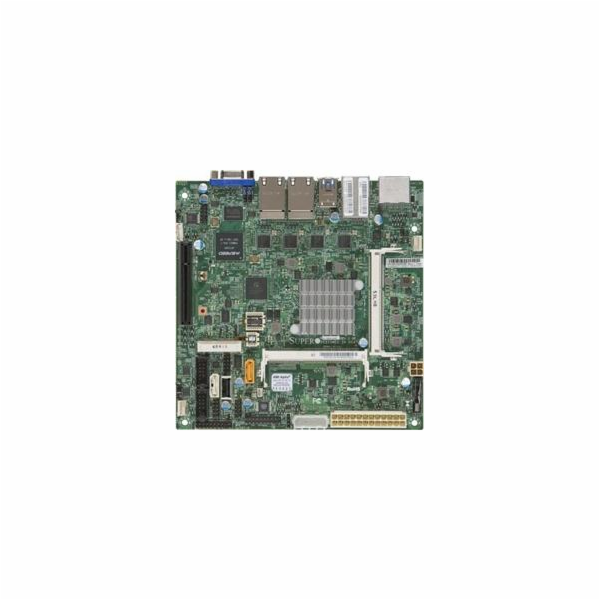

MBD-X11SBA-LN4F X11SBA-LN4F
Physical Stats
Form Factor Mini-ITX
Dimensions 6.7" x 6.7" (17.02cm x 17.02cm)
Processor/Cache
CPU Intel® Pentium? Processor N3710.
Single Socket FCBGA1170 supported, CPU TDP support 6W
Cores / Cache 4 cores, 4 threads / 2MB L2 cache
System Memory
Memory Capacity Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3-1600MHz, in 2 DIMM slots
Max total memory up to 8GB only
Memory Type 1600/1333/1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs
DIMM Sizes 2GB, 4GB, 8GB
Memory Voltage 1.35V
On-Board Devices
Chipset System on Chip
SATA SoC controller for 2 SATA3 (6 Gbps) ports;
IPMI IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controllers Quad LAN with Intel® Ethernet Controller I210-AT
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
Audio ALC 888S HD Audio
Graphics SoC, Aspeed AST2400 BMC
Intel HD Graphics via SoC
Input / Output
SATA 2 SATA3 (6Gbps) port
LAN 4 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB 7 USB 2.0 ports (2 rear + 4 headers + 1 Type A)
2 USB 3.0 ports (2 rear)
Video Output 1 HDMI port, 1 DP (DisplayPort) port, 1 VGA port,
Intel HD Graphics via SoC
Serial Port / Header 2 COM Ports (2 headers)
TPM 1 TPM Header
Expansion Slots
PCI-E 1 PCI-E 2.0 x1 (in x8 slot)
1 Mini-PCI-E with mSATA support
System BIOS
BIOS Type AMI UEFI
BIOS Features ACPI 5.0
UEFI 2.3.1
Plug and Play (PnP)
SMBIOS 2.7.1
DMI 2.3
USB Keyboard support
RTC (Real Time Clock) Wakeup
Management
Software IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SuperDoctor® 5, Watchdog
Power Configurations ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Memory, Memory Voltages, Supports system management utility, System level control, System temperature, VBAT
FAN 2x 4-pin fan headers (up to 2 fans), Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, System level control, Thermal control tachometer fan connectors
Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LED Standby alert LED, CPU / System Overheat LED
Other Features 12V DC or ATX Power Source, 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, System level control, UID, WOL
Operating Environment
Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range -20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
