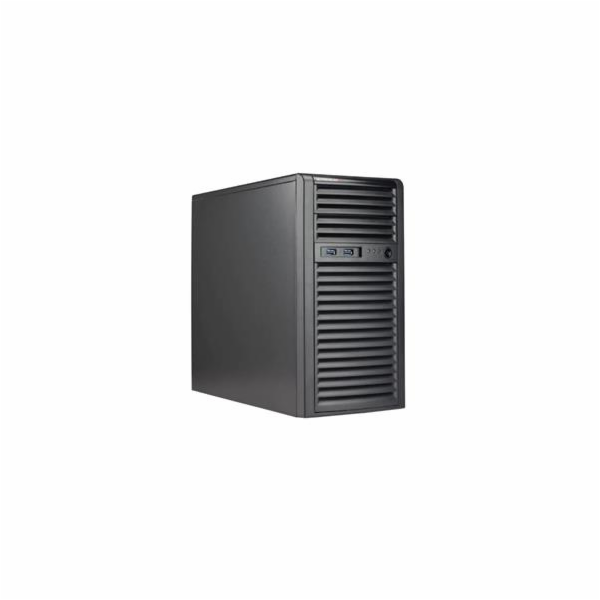

SUPERMICRO Mid-Tower 4x 3,5" fixed HDD, 2x 5,25", 1x external 3,5", 2x 600W

Key Features


90° Rotatable HDD Cage
Kensington Lock Security
Front I/O Ports: 2x USB 2.0
1x Optional Front 12cm (1850 RPM) PWM Fan
Mid-Tower Chassis Supports Micro-ATX Motherboard, Sizes ? E-ATX/ATX/Micro ATX
600W Redundant Power supply
1x Rear 12cm (1850 RPM) PWM Fan
2x 5.25" External HDD Drive Bays & 4x 3.5" Internal HDD Drive Bays
















Product SKUs


SuperChassis  732I-R600B







Form Factor




Mid-Tower chassis support for motherboard size ATX 12" x 10", Micro ATX 9.6" x 9.6", E. ATX 12" x 13"









Processor Support




Dual and Single Intel® and AMD processors









Dimensions


Height


16.7" (424 mm)




Width


7.6" (193 mm)




Depth


20.68" (525 mm)




Gross Weight


30 lbs (13.61 kg)




Net Weight


28 lbs (12.7 kg)




Packaging (W x H x L)


21.38" (543 mm) x 11.97" (304 mm) x 25.28" (642 mm)




Available Color


Black









Expansion Slots




7x Full-height, Full-length expansion slot(s)









Drive Bays




Optional 4x 2.5" fixed drive bay
4x 3.5" fixed drive bay









Peripheral Drives




2x standard 5.25" drive bay
1x 3.5" internal fixed drive bay
1x 90 degree rotatable drive cage









Front Panel


Button


Power On/Off button




LED


Power status LED
HDD activity LED
1 Network activity LEDs
System Overheat LED




Port


2x USB 3.0 Port(s)























Systems Cooling


Fans


Optional 1x 12cm (front) cooling fan
1x 12cm rear exhaust fan(s)









Operating Environment (System)


Operating Temperature Range


5°C - 35°C (41°F - 95°F)




Non-Operating Temperature Range


-40°C - 70°C (-40°F - 158°F)




Operating Relative Humidity Range


8% - 90% (non-condensing)




Non Operating Relative Humidity Range


5% - 95% (non-condensing)









Power Supply


600W PS2 Redundant Power supply,RoHS


Total Output Power and Input


600W with Input 100 - 240Vac




AC Input Frequency


50-60Hz




Dimensions (L x W x H)


190 x 150 x 84 mm




Output Type


24pin ATX




-12V


Max: 0.5A / Min: 0A




+12V


Max: 49A / Min: 1A




+5V


Max: 20A / Min: 0A




+3.3V


Max: 20A / Min: 0A




+5Vsb


Max: 3A / Min: 0A




Certification


N/A









Regulatory (Power Supply)


Power Supply Safety / EMC


BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
