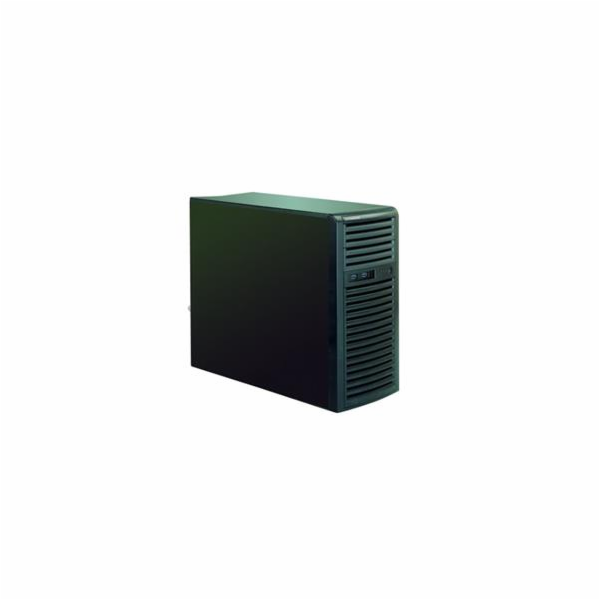

SUPERMICRO Mid-Tower 4x 3,5" fixed HDD, 2x 5,25", 1x external 3,5", 668W (80PLUS Platinum)

Key Features


90° Rotatable HDD Cage
Whisper-Quiet (<21dB)
Kensington Lock Security
Front I/O Ports: 2x USB 3.0
1x Optional Front 12cm (1850 RPM) PWM Fan
Mid-Tower Chassis Supports Micro-ATX Motherboard, Sizes ? E-ATX/ATX/Micro ATX
668W  Platinum Level  Certified High-Efficiency Power Supply
1x Rear 12cm (1850 RPM) PWM Fan
2x 5.25" External HDD Drive Bays & 4x 3.5" Internal HDD Drive Bays


Specifications














Product SKUs





CSE-732I-668B


SuperChassis 732I-668B












Form Factor







Mid-tower chassis support for max. motherboard size - 12" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX












Processor Support







Dual, single Intel® / AMD processors












Dimensions





Height


16.7" (424 mm)




Width


7.6" (193 mm)




Depth


20.68" (525 mm)




Net Weight


28 lbs (12.7 kg)




Gross Weight


30 lbs (13.61 kg)




Packaging (W x H x L)


21.38" (543 mm) x 11.97" (304 mm) x 25.28" (642 mm)




Available Color


Black












Expansion Slots







7 full-height & full-length expansion slot(s)












Drive Bays







4 x 3.5" fixed drive bay
Optional 4 x 2.5" fixed drive bay












Peripheral Drives







2 x standard 5.25" drive bay
1 x 3.5" internal fixed drive bay












Front Panel





Buttons


Power On/Off button




LEDs


1 Network Activity LEDs
HDD activity LED
Power Status LED
System Overheat LED




Ports


2x USB 3.0 Port(s)























Systems Cooling





Fans


1 x 12cm rear exhaust fan(s)
Optional 1 x 12cm (front) cooling fan












Operating Environment (System)





Operating Temperature Range


5°C - 35°C (41°F - 95°F)




Non-Operating Temperature Range


-40°C - 70°C (-40°F - 158°F)




Operating Relative Humidity Range


8% - 90% (non-condensing)




Non-Operating Relative Humidity Range


5% - 95% (non-condensing)












Power Supply


PS2 668W Multi-output power supply 80PLUS Platinum


Power Efficiency


92%




Total Output Power and Input


668W with Input 100 - 240Vac




AC Input Frequency


50-60Hz




Dimensions (L x W x H)


185 x 150 x 86 mm




Output Type


24pin ATX




-12V


Max: 0.1A / Min: 0A




+12V


Max: 54A / Min: 0.2A (100Vac - 240Vac)




+5V


Max: 20A / Min: 0.1A




+3.3V


Max: 15A / Min: 0.1A




+5Vsb


Max: 2A / Min: 0A




Certification


   Platinum Certified












Regulatory (Power Supply)





Power Supply Safety / EMC


BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL













Components










Standard Parts List






Part Number
Qty
Description


Bracket
MCP-250-73201-0N
1
SC732 PS2 Power Supply Bracket


Cable(s)
CBL-0071L
1
ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF


Cable(s)
CBL-0084L
1
16PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE


Cable(s)
CBL-CUSB-1007
1
20p,F to 2x USB 3.0 type A,F,70CM,26/30AWG,RoHS


Cable(s)
CBL-PWCD-0160-IS
1
PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH


Part(s)
MCP-230-73201-0N
1
SC732i USB2.0 Module Assembly


Fan(s)
FAN-0124L4
1
12 CM x12 CM fan


Front Bezel
MCP-210-73201-0B
1
Black SC732i Front IO Dummy Cover


Front Panel
MCP-280-73101-0B
1
Black SC731i Plastic Front Control Panel Assembly


Drive Tray(s)
MCP-220-73101-0B
4
SC731 Tool-less Internal 3.5inch HDD Tray


Power Supply & Accessory
PWS-668-PQ
1
PS2 668W Multi-Output 80Plus Platinum Power Supply with 24pi














Optional Parts List






Part Number
Qty
Description


Heatsink / Retention
N/A
-
Please refer to our Thermal Components Matrix


2.5" HDD Bracket
MCP-220-73201-0N
-
HDD Cage (4x Internal 2.5" fixed HDD bays)


Fa
