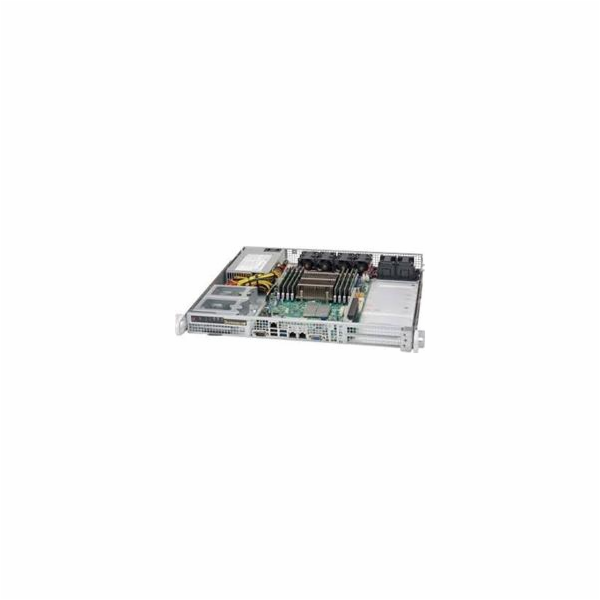

SUPERMICRO mini1U chassis 2x internal Drive Bays 2,5", 350W (Platinum) Front IO

Product SKUs

CSE-515-350 SuperChassis 515-350



Form Factor

##Support STD and WIO MB size up to 12?x13?



Processor Support

##Dual and Single Intel® and AMD processors



Dimensions

Height 1.7" (43 mm)

Width 17.2" (437 mm)

Depth 16.9" (429 mm)

Gross Weight 16 lbs (7.26 kg)

Packaging (W x H x L) 27" (686 mm) x 8" (203 mm) x 24" (610 mm)

Available Color No Paint



Expansion Slots

Up to
2 full height expansion slot(s)



Drive Bays

Optional up to 4 x 2.5" fixed with bracket
Up to 1 x 3.5" fixed drive bay



Front Panel

Buttons Power On/Off button
System Reset Button

LEDs 2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED







Systems Cooling

Fans 4 x 40x56mm PWM fan(s)
Optional 2 x fans for AOC cooling



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U 350W Multi-output power supply Platinum level
Power Efficiency 93%

Total Output Power and Input 350W with Input 100 - 240Vac

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 180 x 100 x 40 mm

Output Type 24pin ATX

-12V Max: 0.2A / Min: 0A

+12V Max: 29A / Min: 0.5A (100Vac - 240Vac)

+5V Max: 15A / Min: 0.2A

+3.3V Max: 12A / Min: 0.2A

+5Vsb Max: 3A / Min: 0A

Certification Platinum Certified Platinum Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class B
TUV/CB
