Product SKUs

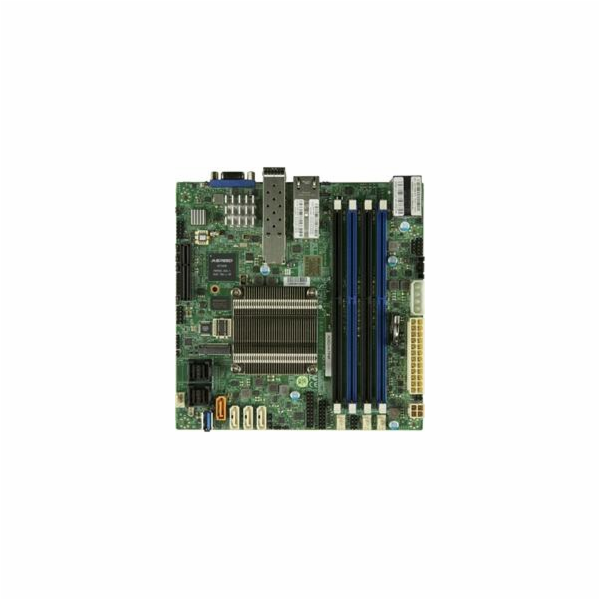

MBD-A2SDi-H-TP4F A2SDi-H-TP4F
Physical Stats
Form Factor Mini-ITX
Dimensions 6.7" x 6.7" (17.02cm x 17.02cm)
Processor/Cache
CPU Intel® Atom® Processor C3958.
Single Socket FCBGA1310 supported, CPU TDP support 31W
Cores / Cache 16 cores, 16 threads / 16MB cache
System Memory
Memory Capacity Up to 256GB Registered ECC RDIMM, DDR4-2400MHz
Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
Memory Type 2400/2133/1866/1600MHz DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset System on Chip
SATA SoC controller for 12 SATA3 (6 Gbps) ports;
4 SATA3 ports, 2 MiniSAS HD ports
IPMI ASPEED AST2400 BMC
Network Controllers Quad LAN with Intel® C3000 SoC
2 10GBaseT and 2 10Gb SFP+
Graphics Aspeed AST2400 BMC
Input / Output
SATA 12 SATA3 (6Gbps) port
LAN 2 RJ45 10GBase-T ports
2 10G SFP+ LAN ports
USB 4 USB 2.0 ports (2 rear + 2 headers),
1 USB 3.0 ports ( + 1 Type A)
Video Output 1 VGA port
Serial Port / Header 1 COM Port (1 header)
TPM TPM Header
Expansion Slots
PCI-E 1 PCI-E 3.0 x4
M.2 M.2 Interface: PCI-E 3.0 x2 and SATA
Form Factor: M-Key 2242, 2280
System BIOS
BIOS Type AMI UEFI
BIOS Features UEFI 2.4
SMBIOS 2.7.1
Management
Software IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog
Power Configurations ATX Power connector
+12V DC Power Input
CPU thermal trip support for processor protection
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +1.8V, +12V, +5V, 1.05 (PCH), 1.2V (VDIMM), 4 -fan status, 4 fans with tachometer monitoring, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, System temperature, VBAT, VCGI
FAN 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control, Support 3-pin fans (w/o speed control), System level control, Thermal control tachometer fan connectors
Temperature CPU thermal trip support
LED UID/Remote UID
Other Features 12V DC or ATX Power Source, 4-pin 12v DC power connector, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Innovation Engine, RoHS, SDDC, System level control, UID, WOL
Operating Environment
Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
