Specifications
Product SKUs

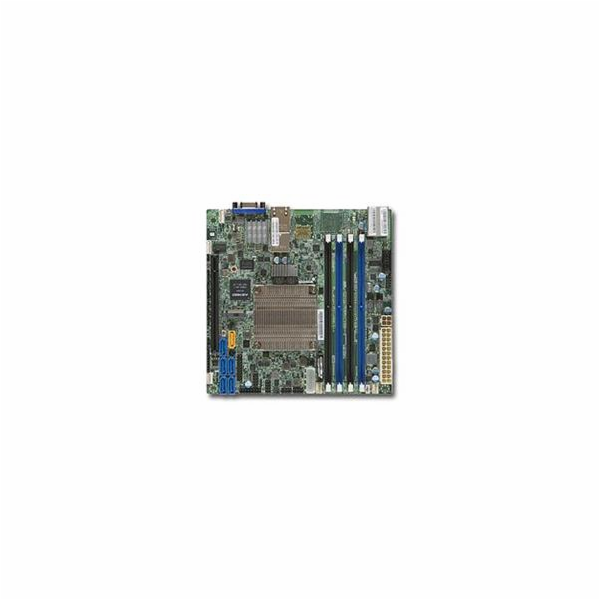

MBD-X10SDV-2C-TLN2F
X10SDV-2C-TLN2F
Physical Stats
Form Factor
Mini-ITX
Dimensions
6.7" x 6.7" (17.02cm x 17.02cm)
Processor/Cache
CPU
Intel® Pentium® Processor D1508.
Socket FCBGA1667 supported, CPU TDP support 25W
Cores / Cache
2 cores, 4 threads / 3MB cache
System Memory
Memory Capacity
Up to 128GB Registered ECC RDIMM, DDR4-1866MHz
Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-1866MHz, in 4 DIMM slots
Memory Type
2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM (Operating speed up to 1866MHz)
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
System on Chip
SATA
SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
RSTe
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controllers
Dual LAN with 10Gbase-T
Single LAN with Virtual Machine Device Queues reduce I/O overhead
Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
Graphics
Aspeed AST2400 BMC
Input / Output
SATA
6 SATA3 (6Gbps) port
LAN
2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port
USB
4 USB 2.0 ports (4 headers, Type A))
2 USB 3.0 ports (2 rear)
Video Output
1 VGA port
Serial Port / Header
1 COM Port (1 header)
TPM
TPM Header
Expansion Slots
PCI-E
1 PCI-E 3.0 x16
M.2
M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2242, 2280
Key: M-Key
System BIOS
BIOS Type
128Mb SPI Flash with AMI BIOS
BIOS Features
PCI 3.0
ACPI 3.0 / 4.0
USB Keyboard support
Hardware BIOS Virus protection
RTC (Real Time Clock) Wakeup
SMBIOS 2.8
UEFI 2.4
Management
Software
Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog
Power Configurations
ACPI Power Management
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery
PC Health Monitoring
Voltage
+12V, +3.3V, +5V, Chassis intrusion header, Monitors for CPU Cores, System level control, VBAT
FAN
4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control
Temperature
Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LED
CPU / System Overheat LED
Other Features
12V DC or ATX Power Source, Chassis intrusion detection, Chassis intrusion header, RoHS
Operating Environment
Operating Temperature Range
0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range
-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
10% ~ 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name
Part
