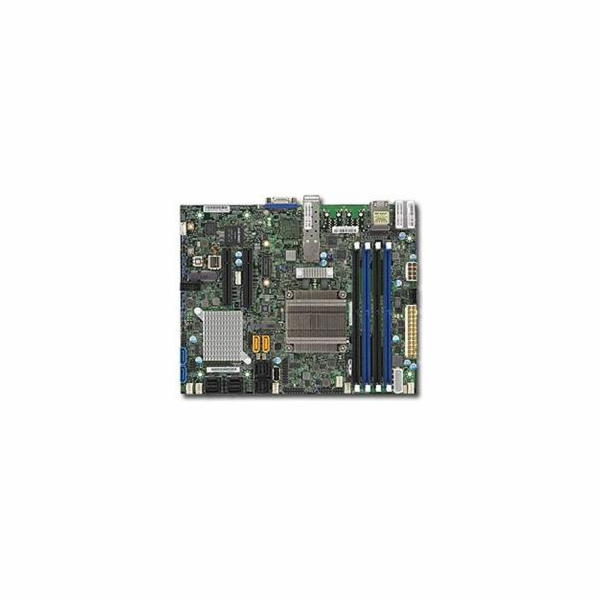

MBD-X10SDV-7TP4F X10SDV-7TP4F
Physical Stats
Form Factor Flex ATX
Dimensions 9.0" x 7.25" (22.86cm x 18.42cm)
Processor/Cache
CPU Intel® Xeon® Processor D-1537.
Single Socket FCBGA1667 supported, CPU TDP support 35W
Cores / Cache 8 cores, 16 threads / 12MB cache
System Memory
Memory Capacity Up to 128GB Registered ECC RDIMM, DDR4-2133MHz
Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
Memory Type 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes 4GB, 8GB, 16GB, 32GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset System on Chip
SATA SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
RSTe
Broadcom® 2116 SW controller for 16 SATA3 (6 Gbps) ports;
SAS2 and SATA3
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers Dual LAN with 10G SFP+ from D-1500 SoC
Dual LAN with 1GbE with Intel® I210
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
Graphics Aspeed AST2400 BMC
Input / Output
SATA 4 SATA3 (6Gbps) port
LAN 2 10G SFP+ LAN ports
2 1GbE LAN ports
1 RJ45 Dedicated IPMI LAN port
USB 5 USB 2.0 ports (4 headers, 1 Type A)
2 USB 3.0 ports (2 rear)
Video Output 1 VGA port
Serial Port / Header 1 COM Port (1 header)
TPM 1 TPM Header
Expansion Slots
PCI-E 2 PCI-E 3.0 x8
M.2 PCI-E 3.0x4, M Key 2242/2280/22110, Mini-PCI-E with mSATA support
M.2 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280/22110
System BIOS
BIOS Type 128Mb SPI Flash with AMI BIOS
BIOS Features PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
RTC (Real Time Clock) Wakeup
SMBIOS 2.8
UEFI 2.4
Management
Software Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog
Power Configurations ACPI Power Management
ATX Power connector
+12V DC Power Input
Control of power-on for recovery from AC power loss
CPU thermal trip support for processor protection
M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL
PC Health Monitoring
Voltage +1.8V, +12V, +3.3V, +5V, 1.2V (VDIMM), Chassis intrusion header, HT, Memory, Memory Voltages, Monitors for CPU Cores, Supports system management utility, System level control, System temperature, VBAT
FAN 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for on/off control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors
Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LED CPU / System Overheat LED
Other Features 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Hyper-Speed Technology hardware acceleration, M.2 NGFF connector, Node Manager Support, RoHS, SDDC, System level control, UID, WOL
Operating Environment
Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)
