Product SKUs

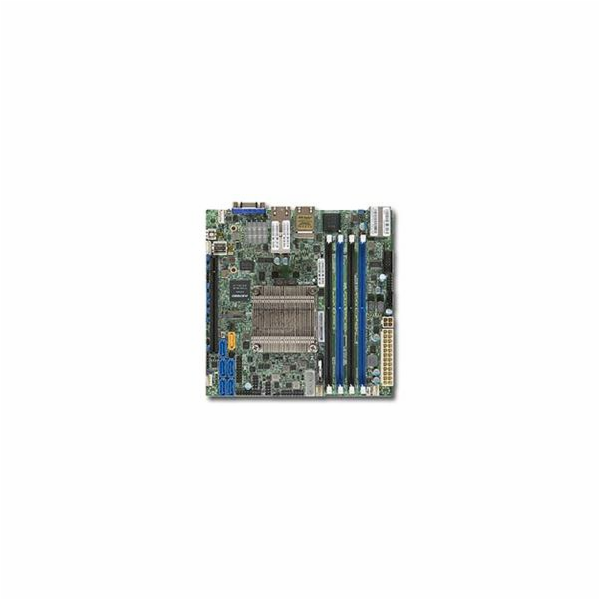

MBD-X10SDV-8C-TLN4F+ X10SDV-8C-TLN4F+
Physical Stats
Form Factor Mini-ITX
Dimensions 6.7" x 6.7" (17.02cm x 17.02cm)
Processor/Cache
CPU Intel® Xeon® Processor D-1537.
Socket FCBGA1667 supported, CPU TDP support 35W
Cores / Cache 8 cores, 16 threads / 12MB cache
System Memory
Memory Capacity Up to 128GB Registered ECC RDIMM, DDR4-2133MHz
Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
Memory Type 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes 4GB, 8GB, 16GB, 32GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset System on Chip
SATA SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
RSTe
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controllers Dual LAN with 10G SFP+ LAN via SoC
Dual LAN with 1GbE LAN via Intel® i350-AM2
Single LAN with Virtual Machine Device Queues reduce I/O overhead
Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
Graphics Aspeed AST2400 BMC
Input / Output
SATA 6 SATA3 (6Gbps) port
LAN 2 10G SFP+ LAN ports
2 1GbE LAN ports
1 RJ45 Dedicated IPMI LAN port
USB 2 USB 2.0 ports (2 headers, Type A))
2 USB 3.0 ports (2 rear)
Video Output 1 VGA port
Serial Port / Header 1 COM Port (1 header)
TPM TPM Header
Others GPIO and SMbus headers
Expansion Slots
PCI-E 1 PCI-E 3.0 x16
M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2242, 2280
Key: M-Key
Support SATA devices
System BIOS
BIOS Type 128Mb SPI Flash with AMI BIOS
BIOS Features PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
RTC (Real Time Clock) Wakeup
SMBIOS 2.8
UEFI 2.4
Management
Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog
System Management Software IPMIView for Linux/Windows
IPMICFG
SUM
SuperDoctor 5
Power Configurations ACPI Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +12V, +3.3V, +5V, 1.2V (VDIMM), Chassis intrusion header, System level control
FAN 4x 4-pin fan headers (up to 4 fans), Dual Cooling Zone, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control
Temperature CPU thermal trip support, I2C temperature sensing logic, Monitoring for CPU and chassis environment, PECI
LED CPU / System Overheat LED
Other Features 12V DC or ATX Power Source, Chassis intrusion detection, Chassis intrusion header, RoHS
Operating Environment
Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
