Product SKUs

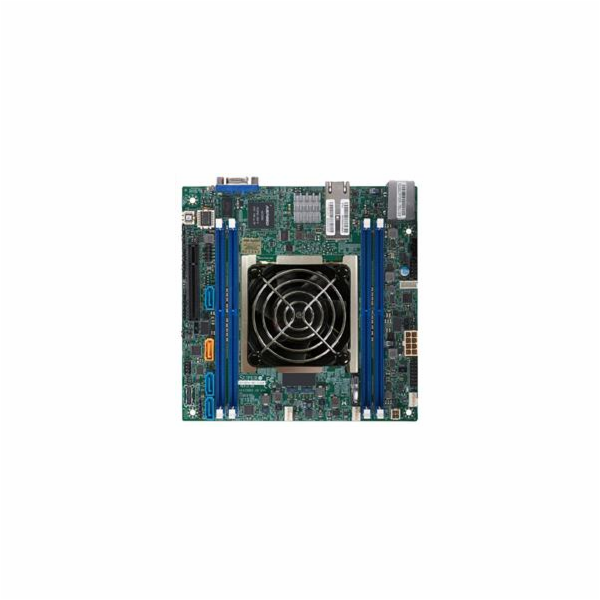

MBD-X11SDV-8C+-TLN2F X11SDV-8C+-TLN2F
Physical Stats
Form Factor Mini-ITX
Dimensions 6.75" x 6.75" (17.15cm x 17.15cm)
Processor/Cache
CPU Intel® Xeon® Processor D-2141I.
Single Socket FCBGA-2518 supported, CPU TDP support 65W TDP
Cores / Cache 8 cores, 16 threads / 11MB cache
System Memory
Memory Capacity Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB ECC LRDIMM, DDR4-2133MHz, in 4 DIMM slots
Memory Type 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
(Operating speed up to 2133MHz)
DIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
LRDIMM: 16GB, 32GB, 64GB, 128GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset System on Chip
SATA SoC controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe)
IPMI ASPEED AST2500
Network Controllers Dual LAN with 10Gbase-T
Graphics Aspeed AST2500 BMC
Input / Output
LAN 2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port
USB 2 USB 2.0 ports (2 via headers, Type A))
2 USB 3.0 ports (2 rear)
Video Output 1 VGA port
TPM TPM Header
Expansion Slots
PCI-E 1 PCI-E 3.0 x8
1 PCI-E 3.0 x4 NVMe Internal Port via OCuLink
System BIOS
BIOS Type AMI UEFI
BIOS Features ACPI 6.1
SMBIOS 3.1
UEFI 2.6
PCI FW 3.2
Management
Software Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
Power Configurations +12V DC Power Input
ACPI Power Management
PC Health Monitoring
Voltage +1.5V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3 -fan status, Memory Voltages, Monitors CPU voltages, Supports system management utility, VBAT
FAN 3x 4-pin fan headers (up to 3 fans), 3 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control)
Temperature Thermal Control for 3 Fan Connectors
LED UID/Remote UID, BMC/IPMI Heartbeat LED, Power LED
Other Features 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Dual Cooling Zones, Node Manager Support, RoHS, UID
Operating Environment
Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
Parts List ?
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SDV-8C+-TLN2F 1 X11SDV-8C+-TLN2F Motherboard
SATA Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
ATX Power Cable CBL-PWEX-1063 1 6CM ATX Power Signal Cable
I/O Shield MCP-260-00084-0N 1 Standard I/O Shield for X11SDV-TLN2F
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SDV-8C+-TLN2F 1 X11SDV-8C+-TLN2F Motherboard
SATA Cables CBL-0044L 4 57.5CM SATA FLAT S-S PBF
U.2 Cable CBL-SAST-0956 1 55CM OCuLink to U.2 Cable with Molex Power Header
ATX Power Cable CBL-PWEX-1063 1 6CM ATX Power Signal Cable
QRG MNL-2019-QRG 1 Motherboard Quick Reference Guide
I/O Shield MCP-260-00084-0N 1 Standard I/O Shield for X11SDV-TLN2F
Optional Parts List
Name Part Number Qty Description
OCuLink to 4x SATA Cable CBL-SAST-0933 -- 50CM OCuLink to 4x SATA Cable
Oculink to NVMe + power cable CBL-SAST-0955 -- OcuLink to PCIe, w/ Power, 45CM,
SATA Power Cable CBL-SAST-0886 -- SATA 15pin x2 to 4pin 40CM
--
