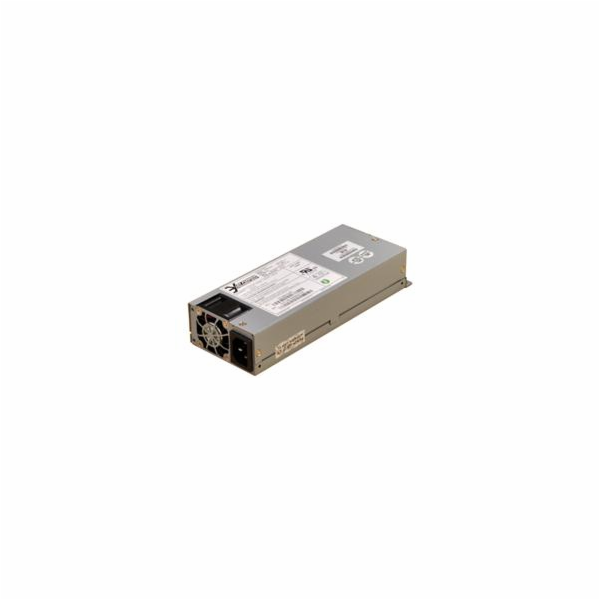

SUPERMICRO nahradní zdroj 1U, 200W, w (pro CSE-504/505..)

The Supermicro PWS-203-1H is an 80 Plus Gold level power supply capable of continuously supplying 200W output power at 91% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and a quiet fan to keep it cool under heavy loads. This power supply is designed to not only provide you reliable power to your Supermicro 1U server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. All materials contained comply with RoHS requirements and is certified by Supermicro.

Cables Included:
•1x 20 Pin ATX (Motherboard)
•1x 8 Pin 12V (CPU)
•2x 4 Pin Legacy HDD
•2x SATA Power Connectors

Total Power Output
200W

Type
Single

Type of Power Supply
Power Supply

Form Factor
1U

Dimension (W x H x L)
76 x 40.3 x 192 mm

+5V
8A

+12V
16A

+3.3V
8A

5V Standby
2A

Input Voltage Range
100-240V

Input Frequency Range
50-60Hz

Input Current Range
2.6A Max

Output Type
20Pin ATX Cable Output

8Pin / 4Pin (12V) Connector
8-Pin

PFC
Yes

Voltage / Current
No

Energy Efficiency
91% Peak

80 Plus Certification
80 Plus Gold

Validated Systems
AS-5019D-FTN4, SYS-1019C-HTN2, SYS-5018A-FTN4, SYS-5018A-TN7B, SYS-5018D-FN4T, SYS-5018D-FN8T, SYS-5019A-FN5T, SYS-5019A-FTN4, SYS-5019A-FTN10P, SYS-5019C-FL, SYS-5019D-4C-FN8TP, SYS-5019D-FN8TP, SYS-5019S-L

Validated Chassis
CSE-504-203B, CSE-505-203B, CSE-510-203B, CSE-510T-203B, CSE-512-203B

Warranty
1 year warranty

Product Environmental Compliance
RoHS and REACH compliant, details available upon request
