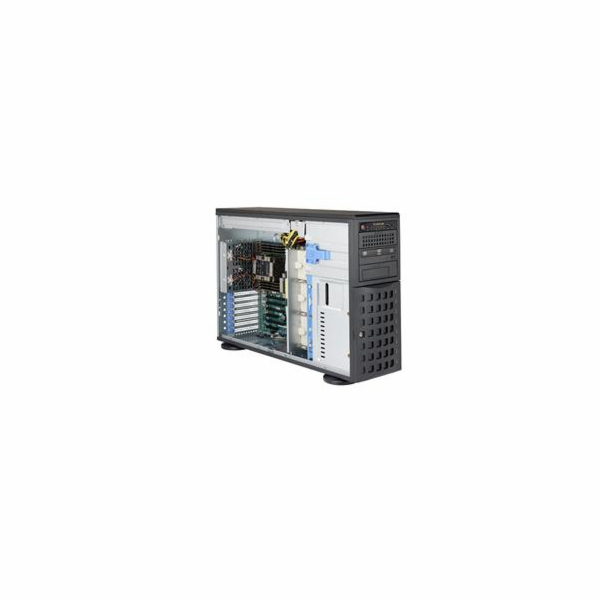

SUPERMICRO Tower/4U CSE-745BAC-R1K23B-SQ 4U, 8x 3.5"/ 2.5" SAS3/SATA3 Backplane for Hot-Swappable Drives, Front I/O Port

Product SKUs


SuperChassis  745BAC-R1K23B-SQ







Form Factor




4U tower chassis - supports maximum motherboard sizes up to E-ATX 13.68" x 13"









Processor Support




Dual and Single Intel® and AMD processors









Dimensions


Height


17.8" (452 mm)




Width


7" (178 mm)




Depth


25.5" (647 mm)




Gross Weight


62 lbs (28.12 kg)




Net Weight


59 lbs (26.76 kg)




Packaging (W x H x L)


14" (356 mm) x 24.6" (625 mm) x 31.3" (795 mm)




Available Color


Black









Expansion Slots




7x Full-height, Full-length expansion slot(s)









Drive Bays




8x 3.5"/2.5" hot-swap SAS drive bay with SES3









Backplane




8-Port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis









Peripheral Drives




3x standard 5.25" drive bay









Front Panel


Button


Power On/Off button
System Reset button




LED


Power status LED
HDD activity LED
System Information LED
Power Fail LED
2 Network Activity LEDs




Port


2x USB 3.0 Port(s)























Systems Cooling


Fans


1x 2700 RPM fan(s)
2x 2800 RPM fan(s)









System Monitoring




Chassis intrusion switch









Operating Environment (System)


Operating Temperature Range


5°C - 35°C (41°F - 95°F)




Non-Operating Temperature Range


-40°C - 70°C (-40°F - 158°F)




Operating Relative Humidity Range


8% - 90% (non-condensing)




Non Operating Relative Humidity Range


5% - 95% (non-condensing)









Power Supply


1U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac, and 240Vdc, output: +12V/+5Vsb, PMBUS 1.2, (L)336x(W)76x(H)40 mm, EMI Class B,


Power Efficiency


96%




Total Output Power and Input


1200W with Input 200 - 240Vac
1000W with Input 100 - 127Vac
1200W with Input 200 - 240Vdc




AC Input Frequency


50-60Hz




Dimensions (L x W x H)


336 x 76 x 40 mm




Output Type


Backplanes (connector)




+12V


Max: 100A / Min: 0A (200Vac - 240Vac)
Max: 83A / Min: 0A (100Vac - 127Vac)




+5Vsb


Max: 4A / Min: 0A




Power Distributor


PDB-PT747-4648
O/P: 12/212
+5V Max: 30A
+3.3V Max: 24A
-12V Max: 0.6A




Certification


N/A









Regulatory (Power Supply)


Power Supply Safety / EMC


BSMI
CCC
CE/EMC
FCC
FCC class B
UL/CB
































Motherboard (for CSE-745BAC-R1K23B-SQ)


Motherboard Name



X12DAI-N6 X13SWA-TF X13SRA-TF
