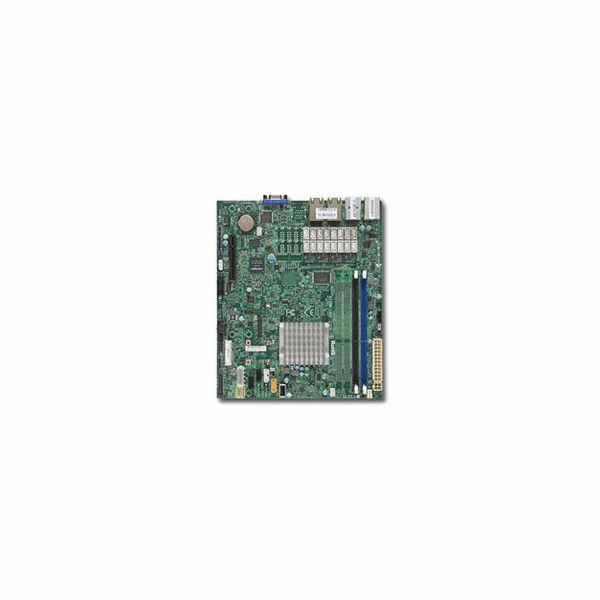

SUPERMICRO uATX MB Atom C2358 2-core (7W), 2x DDR3 ECC/nECC, 2xSATA3, 2xSATA2, 1x PCI-E x4(in x8), 5xLAN, IPMI

Product SKUs

MBD-A1SRM-LN5F-2358 -O ##A1SRM-LN5F-2358 (Retail Pack)

MBD-A1SRM-LN5F-2358 -B ##A1SRM-LN5F-2358 (Bulk Pack)



Physical Stats

Form Factor ##mATX

Dimensions ##8.0" x 9.6" (20.32cm x 24.38cm)



Processor/Cache

CPU ##Intel® Atom™ Processor C2358 (formerly Rangeley)
##CPU TDP 7W (2-Core), 1.7-2.0GHz
##FCBGA 1283
##System-on-Chip



System Memory

Memory Capacity ##2x 240-pin DDR3 UDIMM slot
##Supports up to 16GB DDR3 ECC or non-ECC memory

Memory Type ##1333MHz ECC or non-ECC DDR3 SDRAM, 240-pin gold-plated DIMMs, x8 width only

DIMM Sizes ##8GB, 4GB, 2GB

Memory Voltage ##1.5 V, 1.35 V



On-Board Devices

SATA ##SoC SATA3 (6Gbps), SATA2 (3Gbps)

Network Controllers ##Quad GbE LAN w/ Intel C2000 SoC i354 - 2 pairs LAN bypass
##Single GbE LAN w/ Intel i210-AT

IPMI ##Support for Intelligent Platform Management Interface v.2.0
##IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
##Aspeed AST 2400 BMC

USB 2.0 ##C2000 SoC

Video ##BMC integrated Aspeed AST2400



Input / Output

Serial ATA ##2x SATA3 (6Gbps) ports
##2x SATA2 (3Gbps) ports

LAN ##5x RJ45 Gigabit Ethernet LAN ports with shared LAN IPMI 2.0

USB ##7x USB 2.0 ports (4 rear, 1 Type A, 2 via header)

Serial Port ##2x Fast UART 16550 Serial Port (1 rear with RJ45, 1 via header)

DOM ##1x SATA DOM (Disk on Module) power connector
##1x SuperDOM Supermicro SATA DOM with built-in power connector

VGA ##1x VGA Port

Others ##TPM header



Chassis (Optimized for A1SRM-LN5F-2358 )

1U Chassis: ## SC813MTQ-350CB
## SC512L-200B
## SC512L-260-LCD-Archived
## SC510T-203B
## SC510-203B

Important Chassis Notes ##To support the new generation Intel® Xeon® processor-based motherboards, Revision N chassis is recommended. Please talk to your sales representative for details.






Expansion Slots

PCI-Express ##1x PCI-E 2.0 x4 (in x8) slot



System BIOS

BIOS Type ##128Mb SPI Flash EEPROM with AMI UEFI BIOS

BIOS Features ##Plug and Play (PnP)
##DMI 2.3
##ACPI 5.0
##USB Keyboard support
##SMBIOS 2.7.1
##UEFI



Management

Software ##IPMI (Intelligent Platform Management Interface) v2.0
##SuperDoctor® 5
##Watch Dog
##NMI
##SUM

Power Configurations ##ACPI / ACPM Power Management
##Main Switch Override Mechanism
##Power-on mode for AC power recovery



PC Health Monitoring

Voltage ##Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +5V Standby, VBAT, Memory Voltages.

FAN ##Total of 3x 4-pin fan headers
##3x fans with tachometer status monitoring
##Status monitor for speed control
##Status monitor for on/off control
##Low noise fan speed control
##Pulse Width Modulated (PWM) fan connectors

Temperature ##Monitoring for CPU and chassis environment
##CPU thermal trip support

LED ##System Overheat LED

Other Features ##Chassis intrusion detection
##Chassis intrusion header
##Intel® QuickAssist Technology
##Intel® Turbo Boost Technology
##3x pairs software programmable GbE LAN Bypass ports
##12V DC or ATX power option



Operating Temperature


• 0°C to 60°C
