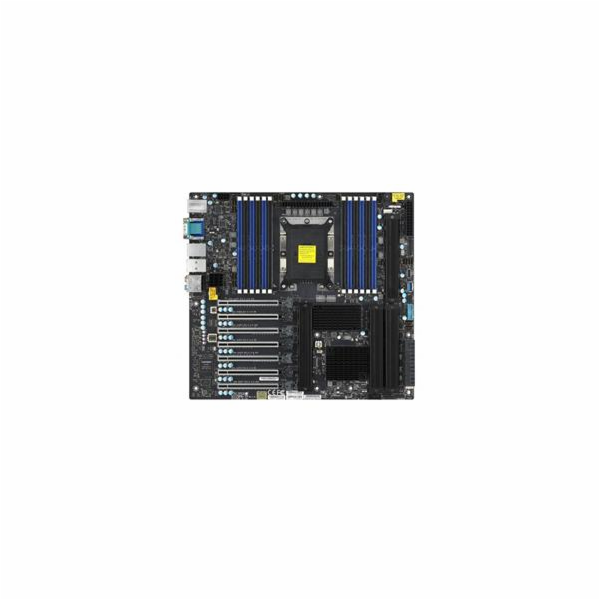

MBD-X11SPA-TF X11SPA-TF
Physical Stats
Form Factor E-ATX
Dimensions 12" x 13" (30.48cm x 33.02cm)
Processor/Cache
CPU 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP
Cores / Cache Up to 28 cores
System Memory
Memory Capacity Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz
Up to 3TB Intel® Optane™ Persistent Memory 200 Series, DDR4-2666MHz, in 12 DIMM slots
Memory Type N/A
DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage 1.2V
On-Board Devices
Chipset Intel® C621
SATA Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2500
Network Controllers Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Aquantia® AQC107 10G Ethernet Controller
Single LAN with Realtek RTL8211E PHY (dedicated IPMI)
Audio ALC 888S HD Audio
Graphics ASPEED AST2500 BMC
VGA connector is dedicated for IPMI.
Input / Output
LAN 1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port
USB 2 USB 2.0 ports (2 via headers)
6 USB 3.1 Gen1 ports (4 Rears Type A, 2 via headers)
4 USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C, 1 Type A + 1 Type C)
Video Output 1 VGA port,
VGA connector is dedicated for IPMI.
Serial Port / Header 2 COM Ports (1 rear, 1 header)
TPM 1 TPM Header
Expansion Slots
PCI-E 4 PCI-E 3.0 x16,
3 PCI-E 3.0 x8 (in x16 slot),
PCI-Ex16 Slot#1 shares with M.2, Slot#2 shares with Slot#3(NA/16,8/8), Slot#4 shares with Slot#5(NA/16,8/8), Slot#6 shares with Slot#7(NA/16,8/8)
M.2 M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1
Form Factor: 2242/2260/2280/22110
Key: M-Key
M.2 support RAID 0,1(up to RAID 5, 10), VROC key is required for Raid.
System BIOS
BIOS Type 256Mb SPI Flash with AMI BIOS
BIOS Features ACPI 3.0 / 4.0
SMBIOS 2.7
PCI FW 3.0
RTC (Real Time Clock) Wakeup
Management
Software IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SPM, SUM, SuperDoctor® 5, Watchdog
System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
SuperDoctor 5
Power Configurations ACPI Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery
CPU thermal trip support for processor protection
PC Health Monitoring
Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
Temperature CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
LED CPU / System Overheat LED, Suspend static indicator LED
Other Features Chassis intrusion header, CPU thermal trip support for processor protection, Dual Cooling Zones, Intel Smart Response Technology, RoHS, UID, WOL
Operating Environment
Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
Parts List ?
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SPA-TF 1 X11SPA-TF Motherboard
X11SPA series IO Shield MCP-260-00142-0N 1
SATA cable CBL-0044L 2
CPU-GPU power connector adapter CBL-PWEX-0663 1
M.2 Heatsink SNK-C0121L-1 4 Probably on motherboard
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SPA-TF 1 X11SPA-TF Motherboard
X11SPA series IO Shield MCP-260-00142-0N 1
SATA cable CBL-0044L 6
CPU-GPU power connector adapter CBL-PWEX-0663 1
X11SPA-TF/X11SPA-T Quick Reference Guide MNL-2173-QRG 1
M.2 Heatsink SNK-C0121L-1 4 Probably on motherboard
Optional Parts List
Name Part Number Qty Description
4U CPU Heat Sink SNK-P0071APS4 1 4U Active CPU Heat Sink for SYS-5049A-T.
TPM security module (optional, not included) AOM-TPM-9671V 1 TPM for X11SPA-TF
TPM security module (optional, not included) AOM-TPM-9671V-S 1 TPM for X11SPA-TF
TPM security module (optional, not included) AOM-TPM-9670V 1 TPM for X11SPA-TF
TPM security module (optional, not included) AOM-TPM-9670V-S 1 TPM for X11SPA-TF
Chassis (Optimized for X11SPA-TF)
Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC743AC-1200B-SQ
SC743AC-668B
SC743TQ-903B
SC745BAC-R1K28B2
SC745BTQ-R1K28B-SQ
SC842XTQC-R804B
SC842TQC-865B
SC842TQC-668B
SC747BTQ-R1K62B
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Server (Optimized for X11SPA-TF)
Server Name
SYS-5049A-T
