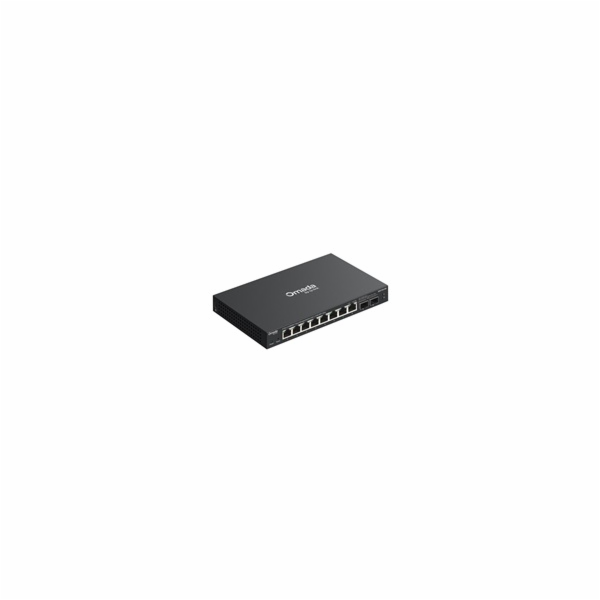

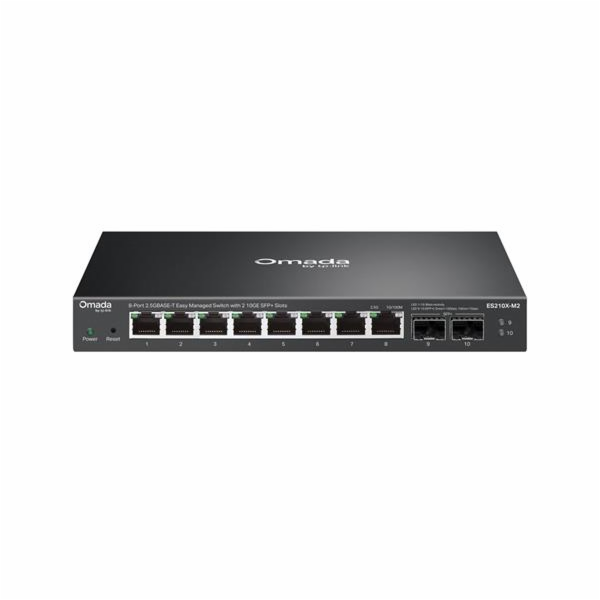

TP-Link OMADA switch ES210X-M2 (8x2,5GbE,2xSFP+,fanless)

TP-Link OMADA switch ES210X-M2
Omada 8portový Easy Managed Switch 2.5G BASE-T se 2 sloty 10GE SFP+

8× 2,5Gb/s RJ45 portů
2× 10Gb/s sloty SFP+
Snadné použití: Podpora plug-and-play pro okamžité připojení a jednoduchá konfigurace dalších funkcí
Centralizovaná cloudová správa prostřednictvím webu nebo aplikace Omada†
Automatická prevence smyček, VLAN a IGMP Snooping Bezventilátorový design pro tichý provoz
Odolné kovové šasi a možnost umístění na stůl nebo montáže na zeď


Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-agile/es210x-m2

Technické specifikace


HARDWARE FEATURES
Interface • 8× 2.5 Gbps RJ45 Ports
• 2× 10 Gbps SFP+ Slots
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity Fanless
Installation • Desktop
• Wall Mount
Physical Security Lock ?
Power Supply DC Power Adapter (Output: 12 VDC / 1.5 A)
Dimensions ( W x D x H ) 8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm)
Surge Protection ±6 kV
PERFORMANCE
Packet Buffer Memory 640 KB
Jumbo Frame 10 KB
Switching Capacity 80 Gbps
Packet Forwarding Rate 59.52 Mpps
MAC Address Table 16K
SOFTWARE FEATURES
Quality of Service • Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control?
L2 Features • Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
L2 Multicast • IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method Store-And-Forward
Management Features
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
OTHERS
Certification FCC, CE, RoHS
Package Content • ES210X-M2
• Power Adapter
• Rubber Feet
• Installation Guide
Environment • Operating Temperature: -5?~40? (23?~104?)
• Storage Temperature: -40?~70? (-40?~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
