TFA TFA.me ID-01 WLAN Gateway 35.8103.02

DCF (Evropa): ano
Rozsah měření teploty (° C): 0 ... +50
Měřící rozsah vnitřní vlhkosti (rel. H. v%): 10 - 99
Rozsah měření venkovní teploty (° C): -40 ... +60
satelitní: ne
Předpověď počasí: ne
Funkce buzení: ne
Datum: ano
Vlhkost: ano
Měsíc: ano
Teplota: ano
Ukazatel teploty: °C
Čas: ano
Zobrazení času: 24h
Den v týdnu: ano
Venkovní vysílač: ano
Barometr: ne
Hodnota emisí CO2: ne
Vlhkoměr: ano
Srážkoměr: ne
Měřič rychlosti větru: ne
Varování před bouřkou: ne
zásobování energií: Baterie
Typ baterie / aku: AAA (Micro)
Potřebný počet baterií: 3
Displej: LCD
Osvětlení pozadí: ne
Typ: Meterologická stanice
Barva: bílá
Šířka (cm): 6,9
Výška (cm): 7,0
Hloubka (cm): 7,0
Hmotnost (g): 103
Montáž na zeď možná: ano

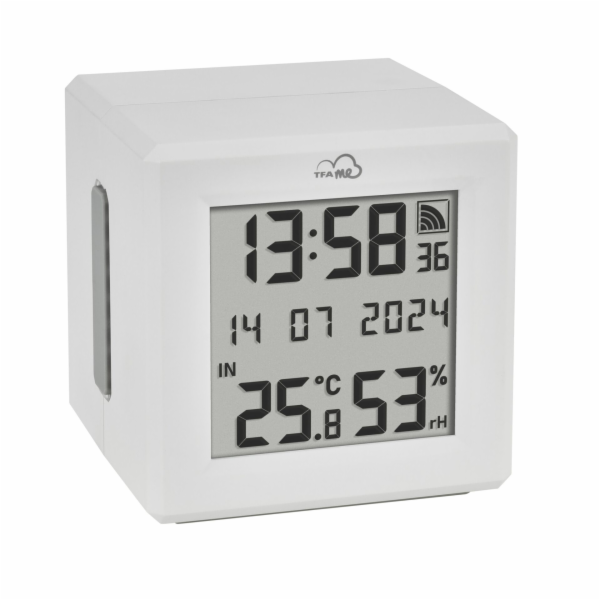

TFA WLAN Gateway TFA.me ID-01 35.8103.02

This handy cube is the cornerstone of the TFA.me system. It acts as a receiving unit: numerous TFA ID radio transmitters for various measured variables are received and forwarded by the WLAN Gateway TFA.me ID-01. This means that the values determined can be accessed online worldwide. The only requirement is a WLAN and Internet connection. Thanks to its own display and internal sensors, the gateway also functions as a digital thermo-hygrometer for the indoor climate at the installation site. Five channels also enable a manually selectable or automatically changing display of up to five thermo-hygro radio transmitters (sold separately) on the display.

In addition to monitoring your home and garden, the TFA.me system and gateway are ideal for professional use – perfect for pharmacies, laboratories or catering establishments. Wherever comprehensive monitoring of temperature and humidity is essential, the compact gateway module has earned itself a permanent place. The measurement data is transmitted via the internet and can be accessed on the browser-based TFA.me portal – flexibly on your smartphone, tablet or PC. At the same time, you can be notified by email if defined measured values are exceeded or not reached. You can also have manual or automated exports of the measured values sent to you by email via the TFA.me portal.

Simply create an account, add the gateway and transmitter using the individual ID number, and then view all linked devices in an overview. With a click, you can access a detailed view with a history graph. In addition, alarm messages can be set to be sent by email if individually defined limits are exceeded, and the measured values for a day, week or month can be exported as a diagram or table.

A supplied power cable provides the gateway with power, and three standard AAA batteries (not included) can be used as a backup – for example, in the event of a power failure or a change of location. In addition to temperature and humidity, the current time and the full date or the written-out day of the week are displayed in six languages.

Functions:


WLAN gateway for TFA.me system
For receiving and forwarding signals from up to 50 TFA-ID transmitters (available separately)
Display shows indoor temperature and humidity or readings from up to 5 transmitters (not included)
Measurement data can be accessed worldwide via your own TFA.me portal
Flexible access via smartphone, tablet or PC
Data evaluation with maximum and minimum values and history graph
Data export can be set to daily, weekly or monthly
Alarm notifications via email
Display of time and date or day of the week (6 languages)


Features:


Maximum range: 100 m
Maximum number of transmitters: 5 (on the base station), 50 via TFA.me online portal
Transmission frequency: 868 MHz
Material: plastic
Mounting: for hanging or standing
Dimensions (W x H x D): 69 x 70 x 70 mm
Weight: 103 g


Note:
Required batteries are not included in the scope of delivery.
