Thermaltake AX500 Snow White

Horní strana: 1x 120 mm / 1x 140 mm / 1x 240 mm / 1x 280 mm / 1x 360 mm / 1x 420 mm
Přední strana: 1x 120 mm / 1x 140 mm / 1x 240 mm / 1x 280 mm / 1x 360 mm / 1x 420 mm
Zadní strana: 1x 120 mm / 1x 140 mm
Horní strana: 3x 120 mm / 3x 140 mm
Přední strana: 4x 120 mm / 3x 140 mm
Zadní strana: 1x 120 mm / 1x 140 mm
Pravá strana: 3x 120 mm / 2x 140 mm
Typ pouzdra: Počítačová skříň Full-Tower
Mechanika 2,5": 1x
Mechanika 3,5": 5x
PCIe rozšiřující sloty: 8x
Boční díl: Okno
Síťový adaptér: volitelný
Max. výška ventilátoru CPU (mm): 185
Max. délka grafické karty (mm): 460
Nainstalované ventilátory: 4x 140 mm
ATX: ano
Micro-ATX: ano
ATX-extended (E-ATX): ano
Mini-ITX: ano
USB-A: 2x USB-A 3.0
USB-C: 1x USB-C 3.2 Gen 2 (10 GBit/s)
Kombinovaný audio konektor: 1x
Barva: bílá
Materiál: Ocel / sklo
Šířka (cm): 24,8
Výška (cm): 65,0
Hloubka (cm): 54,8

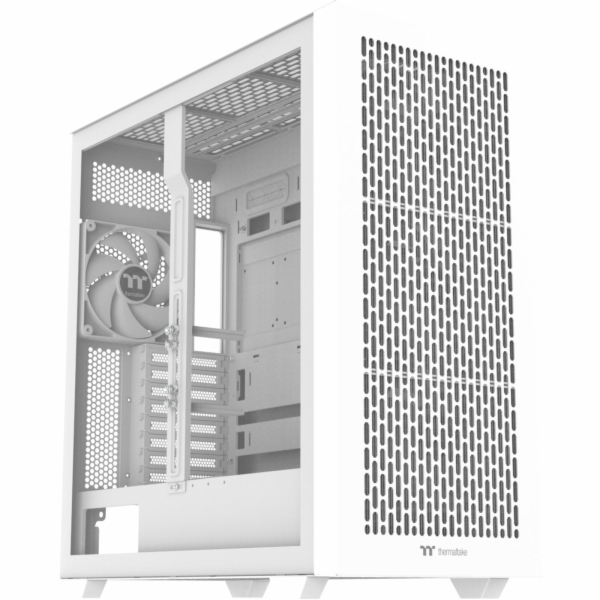

Thermaltake AX500 Snow White Full Tower PC Case

The AX500 Snow Full-Tower case supports E-ATX/SSI-EEB motherboards, two 420 mm radiators and up to fourteen 120 mm fans for optimal airflow. It features a graphics card holder to prevent sagging and two drive cages under the power supply cover - ideal for high-performance workstations, gaming setups and AI computing.

Features:


Full Tower PC case
Compatible with hidden connector motherboards (ASUS BTF Series / MSI PROJECT ZERO Series / GIGABYTE PROJECT STEALTH Series)
420 / 360 mm Radiator support
4 pre-installed 140 mm CT140 fans
Maximum fan support: up to 14x 120 mm or 9x 140 mm
Built-in GPU holder (for added support that prevents multiple GPUs from sagging)
Tidy cable management
Dust filter on the front, top, bottom and sides of the motherboard
I/O connections: 1x USB-C 3.2 Gen2 (10 Gbit/s) / 2x USB-A 3.0 (5 Gbit/s) / 1x audio combo jack 3.5 mm
1x glazed side panel


Technical data:


Series: AX series
Type: Full tower
Installed fans: 4 pieces 140 x 140 x 25 mm CT140 fans (1500 rpm/min, 30.5 dBA)
Possible drives: 5x 3.5" + 1x 2.5" or 6x 2.5"
Expansion slots: 8
Possible motherboards: Mini ITX, Micro ATX, ATX, E-ATX, SSI-CEB, SSI-EEB
Motherboard with hidden ports: 9.6 x 9.6 inches (Micro ATX), 12 x 9.6 inches (ATX)
Possible power supply: PS2 standard power supply (optional)
Fan support max.:

Front: 4x 120 mm or 3x 140 mm
Top: 3x 120 mm or 3x 140 mm
Rear: 1x120 mm or 1x 140 mm
Right: 3x 120 mm or 2x 140 mm
Power cover: 3x 120 mm


Radiator support (AIO) max.:

Front: 1x possible sizes: 420 / 360 / 280 / 240 / 140 / 120 mm
Top: 1x possible sizes: 420 / 360 / 280 / 240 / 140 / 120 mm
Rear: 1x possible sizes: 140 / 120 mm


CPU cooler: up to maximum length 185 mm
Possible GPU length: max 460 mm
Power supply length: up to 200 mm
Dimensions (H x W x D): 650 x 248 x 548 mm
Material: steel / glass
Colour: white
