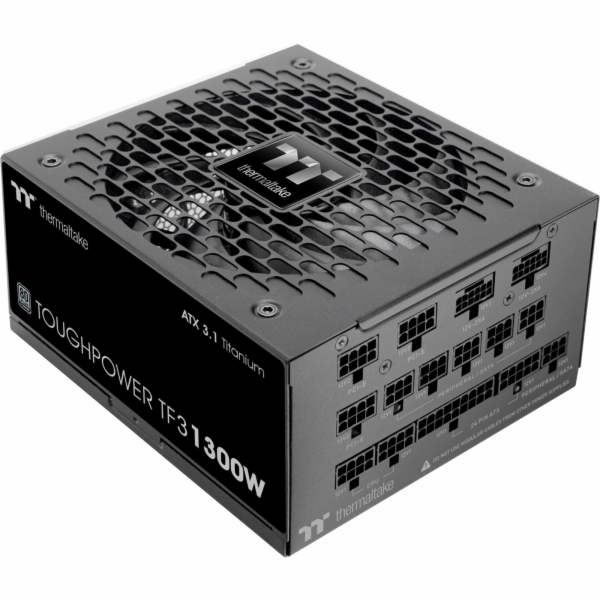

Thermaltake Toughpower TF3 1300W

Vstupní frekvence (Hz): 50 - 60
Vstupní napětí (V): 100 - 240
Intenzita proudu (amper): 15 / 10
Zkrat (SCP): ano
Proudové špičky (OCP): ano
Přetížení (OVP): ano
Podpětí (UVP): ano
Přehřátí (OTP): ano
Přetížení (OPP): ano
Ventilátor (počet): 1
Způsob chlazení: aktivní
Průměr větráku (mm): 140
Typ PFC (Power Factor Correction): Aktiv-PFC
Síťový vypínač: ano
Životnost / MTBF (hod): 100000
Vedení kabelů: plně modulární
ATX-Mainboard: 1x 24pin
ATX12V: 2x 4+4pin
PCIe 5.0 (12VHPWR): 2x
Peripheral P4: 8x 4pin
S-ATA: 16x 5pin
Výkon (Watt): 1300
Form faktor: ATX
Verze ATX: 3.1
certifikace: 80PLUS Titanium
Barva: černá
Šířka (mm): 150
Výška (mm): 86
Hloubka (mm): 165

Thermaltake Toughpower TF3 1300W PC-Netzteil PCIe 5.1 Ready, black

The Toughpower TF3 1300W is 80 PLUS titanium certified and compatible with ATX 3.1 specifications. Equipped with two native 12V-2x6 modular ports, it supports PCIe 12+4-pin cards such as the RTX 50 and 40 series, making it fully compatible with powerful PCIe 5.1 graphics cards.

Manual overclocking mode
The OCM switch allows you to easily optimize your system’s performance. By default, the power supply works in multi-rail mode with over-current protection (OCP) to ensure maximum safety for your components. Overclocking enthusiasts can put the power supply in single 12-volt rail mode with a simple click on the OCM switch to increase performance when you need it most.

Features:


Power: 1300 W
ATX 3.1
PCIe Gen 5.1 Ready:  2x Up to 600W max (Delivers up to 600W total power for PCIe 5.1 graphics cards)
Switch for physical overclocking mode
Particularly quiet 140 mm hydraulic fan
Fully modular low-profile cables
Integrated protection in industrial quality: OCP, OVP, UVP, OPP, SCP, OTP
80 Plus titanium certified


Technical data:


Dimensions: 150 x 86 x 165 mm
PFC: Active PFC
Amperage: 15 - 10 A
Voltage: 100 - 240 V (50 / 60 Hz)
Lifetime (MTBF): about 100000 hours
Connections:

1x 24 pin mainboard, cable length 600 mm
2x ATX 12V (4+4Pin), cable length 750 mm
5x PCIe (6+2Pin), cable length 600 mm / 600 + 150 mm
2x PCIe (12+4Pin max 600W total power), cable length 600 mm
16x SATA (5pin), cable length 6000 mm + 150 mm + 150 mm + 150 mm
8x Peripheral (4Pin), cable length 600 mm + 150 mm + 150 mm + 150 mm


Colour: black
