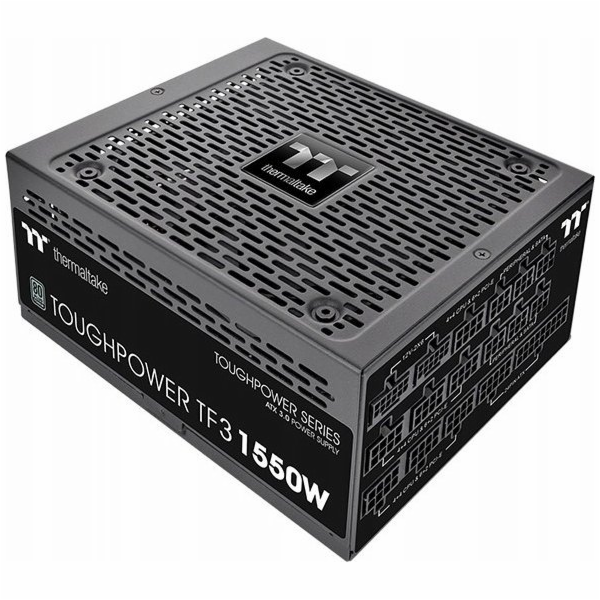

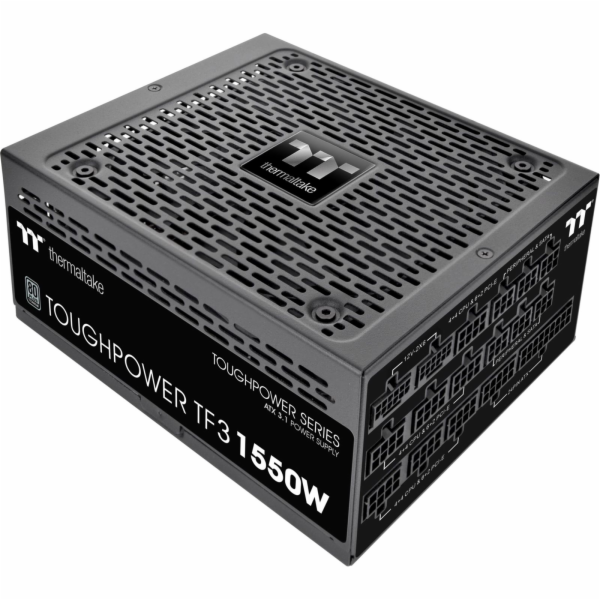

Thermaltake Toughpower TF3 1550W napájecí zdroj (PS-TPD-1550FNFATE-3)

Vstupní frekvence (Hz): 50 - 60
Vstupní napětí (V): 100 - 240
Intenzita proudu (amper): 20 / 8
Přehřátí (OTP): ano
Proudové špičky (OCP): ano
Přetížení (OPP): ano
Zkrat (SCP): ano
Přetížení (OVP): ano
Podpětí (UVP): ano
Ventilátor (počet): 1
Způsob chlazení: aktivní
Průměr větráku (mm): 140
Typ PFC (Power Factor Correction): Aktiv-PFC
Síťový vypínač: ano
Životnost / MTBF (hod): 100000
Vedení kabelů: plně modulární
ATX-Mainboard: 1x 24pin
ATX12V: 2x 4+4pin
16-Pin (12VHPWR, PCIe 5.0): 2x
Peripheral P4: 8x 4pin
S-ATA: 16x 5pin
Výkon (Watt): 1550
Form faktor: ATX
Verze ATX: 3.1
certifikace: 80PLUS Titanium
Barva: černá
Šířka (mm): 150
Výška (mm): 86
Hloubka (mm): 140

Thermaltake Toughpower TF3 1550W PC-Netzteil PCIe 5.1 Ready, black

Designed for overclockers, users with high-end systems and more, the Toughpower TF3 Titanium 1550W offers 80 PLUS titanium efficiency to meet their needs. The Toughpower TF3 1550W has two native 12V-2x6 ports with a total output of 600W.

Manual overclocking mode
The OCM switch allows you to easily optimize your system’s performance. By default, the power supply works in multi-rail mode with over-current protection (OCP) to ensure maximum safety for your components. Overclocking enthusiasts can put the power supply in single 12-volt rail mode with a simple click on the OCM switch to increase performance when you need it most.

Features:


Power: 1550 W
ATX 3.1
PCIe Gen 5.1 Ready:  2x Up to 600W max (Delivers up to 600W total power for PCIe 5.1 graphics cards)
Switch for physical overclocking mode
Particularly quiet 140 mm hydraulic fan
Fully modular low-profile cables
Integrated protection in industrial quality: OCP, OVP, UVP, OPP, SCP, OTP
80 Plus titanium certified


Technical data:


Dimensions: 150 x 86 x 165 mm
PFC: Active PFC
Current: 20 - 8 A
Voltage: 100 - 240 V (50 / 60 Hz)
Lifetime (MTBF): about 100000 hours
Connections:

1x 24 pin mainboard, cable length 600 mm
2x ATX 12V (4+4Pin), cable length 750 mm
5x PCIe (6+2Pin), cable length 600 mm / 600 + 150 mm
2x PCIe (12+4Pin max 600W total power), cable length 600 mm
16x SATA (5pin), cable length 6000 mm + 150 mm + 150 mm + 150 mm
8x Peripheral (4Pin), cable length 600 mm + 150 mm + 150 mm + 150 mm


Colour: black
