TP-Link Archer AX73 OneMesh/EasyMesh WiFi6 router (AX5400,2,4GHz/5GHz,4xGbELAN,1xGbEWAN,1xUSB3.0)

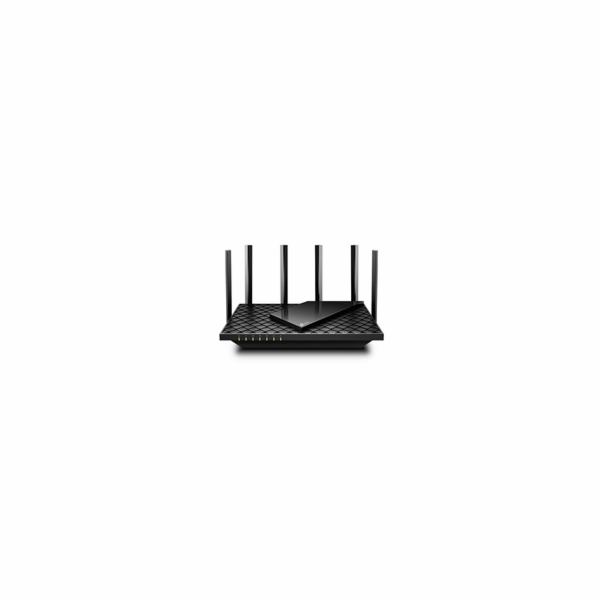

TP-Link Archer AX73
Dvoupásmový gigabitový Wi-Fi 6 router AX5400

Gigabitová Wi-Fi síť pro streamování v rozlišení 8K – 5 400Mbit/s WiFi síť s podporou 4×4 HT160 pro rychlejší prohlížení webových stránek, streamování a stahování, a to vše současně.
Připojte více zařízení při zachování vysoké rychlosti – router podporuje technologie MU-MIMO a OFDMA, které snižují zahlcení sítě a čtyřnásobně zvyšují průměrnou propustnost.
Široké pokrytí – 6 antén a technologie Beamforming zajišťují rozsáhlé pokrytí.
Vysoký výkon – 1,5GHz tříjádrový procesor zaručuje spolehlivý a vysoký výkon.
HomeShield – prémiové služby zabezpečení společnosti TP-Link chrání vaši domácí síť díky vyspělým funkcím na ochranu sítě a zařízení IoT.
Lepší odvětrávání, méně tepla – díky vylepšeným ventilačním otvorům může celý router pracovat na plný výkon.
Port USB pro sdílení – 1 port USB 3.0 umožňuje snadné sdílení médií a vytvoření privátního cloudu.
Snadné nastavení – s aplikací Tether nastavíte router za pár minut.
Podpora technologie OneMesh

Stránky produktu: https://www.tp-link.com/cz/home-networking/wifi-router/archer-ax73/
Technické specifikace



WIRELESS



Standards
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz


WiFi Speeds
AX5400 5 GHz: 4804 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax)


WiFi Range
3 Bedroom Houses 6× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission


WiFi Capacity
High Dual-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 6 Streams Connect your devices to more bandwidth


Working Modes
Router Mode Access Point Mode


HARDWARE



Processor
1.5 GHz Triple-Core CPU


Ethernet Ports
1× Gigabit WAN Port 4× Gigabit LAN Ports Static Link Aggregation (LAG) available with 2× LAN ports


USB Support
1× USB 3.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server


Buttons
Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button


Power
12 V = 2.5 A


SECURITY



WiFi Encryption
WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x)


Network Security
SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner


Guest Network
1× 5 GHz Guest Network 1× 2.4 GHz Guest Network


VPN Server
OpenVPN PPTP


SOFTWARE



Protocols
IPv4 IPv6


Service Kits
HomeShield Learn More>


OneMesh™
OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products>


Parental Controls
HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports


WAN Types
Dynamic IP Static IP PPPoE PPTP L2TP


Quality of Service
QoS by Device


Cloud Service
Auto Firmware Upgrade TP-Link ID DDNS


NAT Forwarding
Port Forwarding Port Triggering DMZ UPnP Virtual Server


IPTV
IGMP Proxy IGMP Snooping Bridge Tag VLAN


DHCP
Address Reservation DHCP Client List Server


DDNS
TP-Link NO-IP DynDNS


Management
Tether App Webpage


PHYSICAL



Dimensions (W×D×H)
10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm)


Package Contents
Wi-Fi Router Archer AX73 Power Adapter RJ45 Ethernet Cable Quick Installation Guide


OTHER



System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)


Certifications
FCC, CE, RoHS


Environment
Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing


TEST DATA



WiFi Transmission Power
CE: <20dBm{2.4GHz} <23dBm{5.15GHz~5.35GHz} <30dBm{5.47GHz~5.725GHz} FCC: <24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz } <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }


WiFi Reception Sensitivity
2.4GHz: 11ac VHT20 MCS0:-94.5dBm 11ac VHT20 MCS8:-72.5dBm 11ac VHT40 MCS0:-92.5dBm 11ac VHT40 MCS9:-69.5dBm 11ax HE20 MCS0:-95dBm 11ax HE20 MCS11:-64.5dBm 11ax HE40 MCS0:-92.5dBm 11ax HE40 MCS11:-62dBm 5GHz: 11ac VHT20 MCS0:-97dBm 11ac VHT20 MCS8:-74dBm 11ac VHT40 MCS0:-95dBm 11ac VHT40 MCS9:-70dBm 11ac VHT80 MCS0:-91.5dBm 11ac VHT80 MCS9:-66dBm 11ac VHT160 MCS0:-86dBm 11ac VHT160 MCS9:-61dBm 11ax HE20 MCS0:-95dBm 11ax HE20 MCS11:-64dBm 11ax HE40 MCS0:-91.5dBm 11ax HE40 MCS11:-62dBm 11ax HE80 MCS0:-88dBm 11ax HE80 MCS11:-58dBm 11ax HE160 MCS0:-85.5dBm 11ax HE160 MCS11:-55dBm
