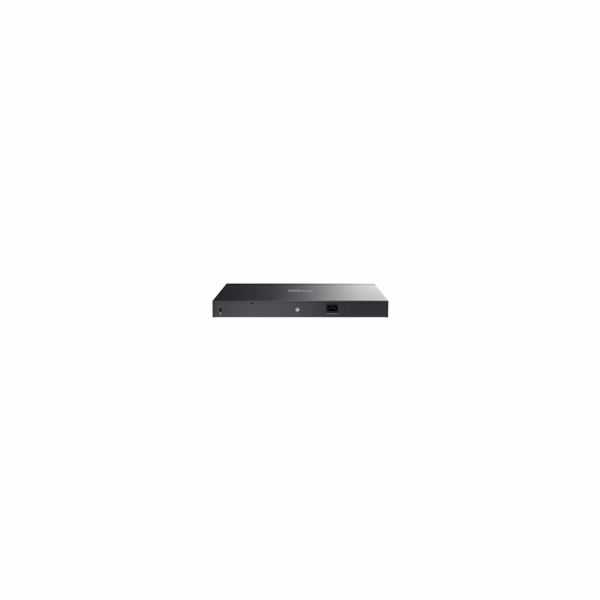

TP-Link OMADA switch ES228GP (26xGbE,2xSFP,24xPoE+,250W)

TP-Link OMADA switch ES228GP
Omada 28portový gigabitový easy managed switch s 24 porty PoE+

26× 10/100/1000Mb/s RJ45 portů (24× PoE+ kompatibilních se standardy 802.3af/at)
2× gigabitový SFP port
Napájecí rozpočet 250 W, až 30 W pro každý PoE port*
Snadné použití: Podpora plug-and-play pro okamžité připojení a jednoduchá konfigurace pokročilých funkcí
Centralizovaná správa v cloudu přes web nebo aplikaci Omada†
Až 250 m (820 ft) PoE**, vzdálený restart kamery†, QoS a izolace portů pro spolehlivé sítě dohledu
Automatická prevence smyček, VLAN a IGMP Snooping
Odolné kovové pouzdro a možnost umístění na stůl nebo montáže na stěnu


Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-agile/es228gp
Technické specifikace


HARDWARE FEATURES
Interface • 26× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
• 2× Gigabit SFP Slots
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity 2
Installation Rackmount
Physical Security Lock ?
Power Supply 100–240V AC, 50/60Hz 4.0A
PoE Ports (RJ45) • Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 24 ports
• PoE Budget: 250W available for all PoE+ ports, 30W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance**
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Surge Protection ±6kV
PERFORMANCE
Switching Capacity 56 Gbps
Packet Forwarding Rate 41.67 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB
SOFTWARE FEATURES
Quality of Service • Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control?
L2 Features • Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
L2 Multicast • IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method Store-And-Forward
Management Features
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
OTHERS
Certification FCC, CE, RoHS
Package Content • ES228GP
• Power Cord
• Mounting Brackets
• Rubber Feet
• Screws
• Installation Guide
Environment • Operating Temperature: -5?~45? (23?~113?)
• Storage Temperature: -40?~70? (-40?~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
