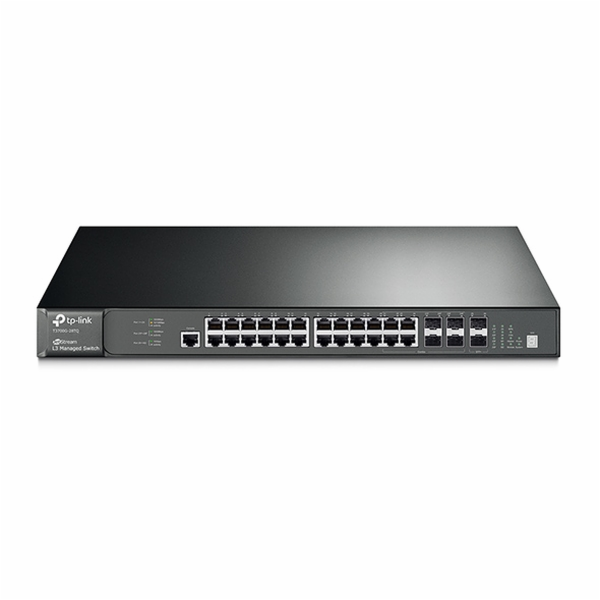

28portový gigabitový řízený switch L3 JetStream
T3700G-28TQ
Směrovací protokoly na 3. vrstvě, včetně RIP/OSPF/ECMP/VRRP, které podporují škálovatelnou síť
Technologie skutečného fyzického stohování podporuje až 8 jednotek a šířku pásma sběrnice 320 Gbit/s pro vysokou škálovatelnost a efektivní redundanci
10gigabitový ethernetový uplink poskytuje aplikace s vysokou šířku pásma pro odlehčení přetížení a plynulý přenos dat
Odnímatelná napájecí jednotka a redundantní funkce napájení minimalizují výpadky
PIM-SM/PIM-DM/IGMP snooping pro pružné použití videa
L3 Routing and Service Features
•Wire-speed IP forwarding
•Static Routing
•RIP v1, v2
•OSPF v2
•ECMP
•PIM-SM/PIM-DM/IGMP
•DHCP Server/Relay
•ARP Proxy
•VRRP
•Physical Stacking
Up to 8 Units Physical Stacking
•Up to 192 GE, 32 Gigabit combo SFP and 16 10G SFP+
•Up to 320Gbps Backplane bandwidth
•Ring Stacking for Link Redundancy
•Distributed Link Aggregation
Power Supply
•Hot-swappable power supply module: PSM150 (Maximum Output Power: 150W)
•Optional external redundant power supply: RPS150 (Maximum Output Power: 150W)
Layer 2 Features
•Link Aggregation Control Protocol (LACP)
•4K VLAN
•IEEE 802.1q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP
•STP/RSTP/MSTP
•IGMP Snooping
•LLDP
Quality of Service
•8 priority queues
•Supports IEEE 802.1P
•DSCP QoS
•Rate limit
•Voice VLAN
Security Strategies
•IP-MAC-Port-VID Binding
•Access Control List (L2~L4 ACL)
•802.1x and RADIUS Authentication
•Supports DoS defence
•Port Security
•SSL and SSH encryptions
Management
•Web-based GUI
•Command Line Interface
•SNMP v1/v2c/v3
•RMON (1, 2, 3, 9 group)
•IP Clustering
•Dual Image
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface
24 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 combo gigabit SFP Slots
Up to 4 10G SFP+ Slots (2 fixed and 2 optional 10G SFP+ Slots)
1 Console Port
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF
10GBASE-LR
10GBASE-SR
Fan Quantity
4
Power Supply
100~240VAC, 50/60Hz
Dimensions ( W x D x H )
17.32*13*1.73 in.(440*330*44 mm)
PHYSICAL STACKING
Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables
TXM431-SR
TXM431-LR
TXC432-CU1M
TXC432-CU3M
Max Number of Stacking Ports Installable
2 SFP+
No. of Units Per Stack
8
Stacking Speed (Per Port)
20 Gbps (Full-Duplex)
PERFORMANCE
Switching Capacity
Up to 128Gbps for a standalone switch
Bandwidth/Backplane
Up to 320Gbps when 8 units in the stack
Packet Forwarding Rate
Up to 95.2Mpps for a standalone switch
MAC Address Table
32K
Packet Buffer Memory
16 Mbits
Jumbo Frame
10240 Bytes
Number of Routes
12K
Number of Static Routes
256
Number of IP Interfaces
128
SOFTWARE FEATURES
Quality of Service
Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
L2 Features
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 32 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
VLAN
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP
Access Control List
L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
Time Range Based
Security
IP-MAC-Port-VID Binding
IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
DoS Defence
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
L3 Features
Wire-speed IP forwarding
Static Routing
RIP v1, v2
OSPF v2
ECMP
PIM-SM/PIM-DM/IGMP
DHCP Server/Relay
ARP Proxy
VRRP
Management
Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image
OTHERS
Certification
CE, FCC, RoHS
Package Contents
Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
