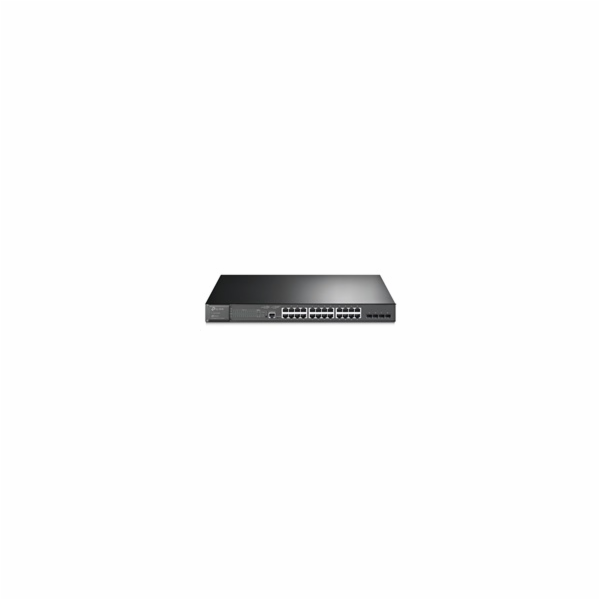

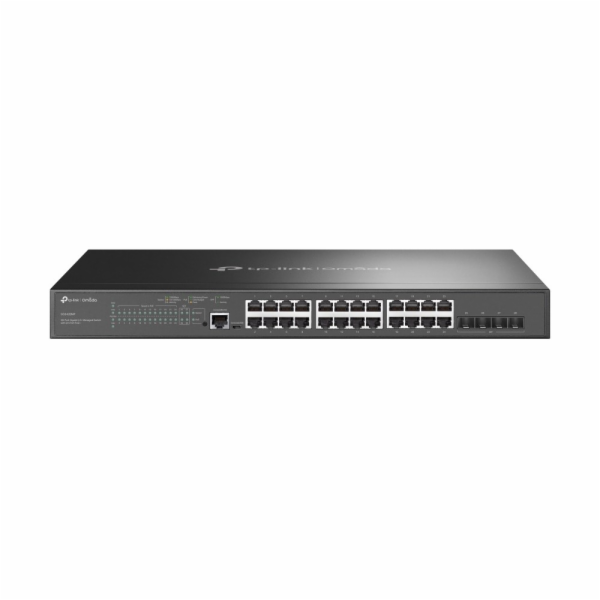

TP-Link OMADA JetStream switch TL-SG3428MP (24xGbE, 4xSFP, 24x PoE+ 384W, 2xConsole)

Počet Gigabit-Portů: 24
Počet SFP Portů: 4
Jumbo rámeček: 9K (max.)
PoE (Power over Ethernet): ano
Možnost montáže na stojan: ano
IEEE 802.1AB Link Layer Discovery Protocol (LLDP): ano
IEEE 802.1d: ano
IEEE 802.1p: ano
IEEE 802.1s: ano
IEEE 802.1w: ano
IEEE 802.1X Port Based Network Access Control (PNAC): ano
IEEE 802.3ad Link Aggregation Control Protocol: ano
IEEE 802.3at Power over Ethernet Plus (PoE+): ano
IEEE 802.3x Flow Control (Full-Duplex Flow Control): ano
Typ: Switch
Barva: černá
Šířka (mm): 440
Výška (mm): 44
Hloubka (mm): 330
Hmotnost (g): 3000

TP-LINK TL-SG3428MP JetStream 28-Port Gigabit L2 Managed Switch with 24 PoE+ Ports

The TL-SG3428MP is an L2 PoE+ switch that can be easily integrated into the Omada SDN system to enable centralized management. It has 24 PoE+ ports with a total power of 384W and 4 Gigabit SFP slots for fast connections. It offers comprehensive security features, static routing, QoS and IGMP snooping. It can be easily managed via the cloud or the Omada app. The switch provides uninterrupted wireless and wired connections that are perfect for industries such as hotels, schools, stores, offices and others.

Features:


24x Gigabit PoE+ ports
4x Gigabit SFP ports
Total PoE budget: 384 W, up to max. 30 W per port
Uses a single Ethernet cable to transmit data and power
Enables easy installation of PoE-enabled devices such as WLAN access points, IP cameras and IP telephones
Integrated in Omada SDN:
Centralized management
Static routing: Redirects internal data traffic so that the network is used optimally
Centralized management: Cloud access and the Omada app make everything very convenient and easy to manage
Reliable security functions: IP-MAC port mapping, ACL, port security, DoS protection, storm control, DHCP snooping, 802.1X, Radius authentication and more
Optimized voice and video applications


Technical data:


Interfaces:

Poe / PoE+ ports:

Standard: 802.3at/af compliant
PoE+ ports: 24 ports, up to 30 W per port
PoE budget total power max.: 384 W




4× Gigabit SFP slots
1× RJ45 console port
1× Micro-USB console port
Number of fans: 2
Power supply: 100 - 240 V AC ~ 50/60 Hz
Max. Power consumption:

31.0 W (110 V/60 Hz) (no PD connected)
463.8 W (110 V/60 Hz) (with PD connected 384 W)


Switching capacity: 56 Gbit/s
Packet forwarding rate: 41.66 Mpps
MAC address table: 8K
Packet buffer memory: 4.1 Mbit
Jumbo frames: 9 KB
Guest VPN
DoS Defend
Mounting: Rack mountable
Dimensions (W x D x H): 440 × 330 × 44 mm
Color: black
