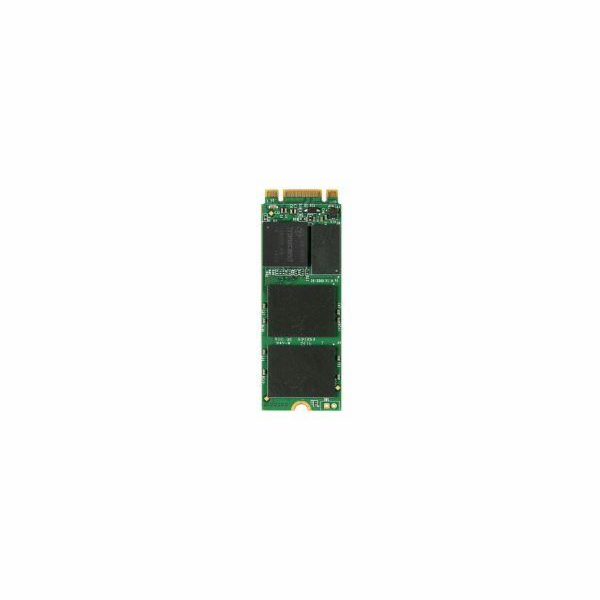

TRANSCEND MTS600 128GB SSD disk M.2 2260, SATA III (MLC), tray
Transcend s SATA III 6Gb/s M.2 SSD 600 boasts ultra compact dimensions to address the high performance needs and strict size limitations of small form factor devices, best suited for Ultrabooks and thin, light notebooks. Featuring a powerful controller, exceptional transfer speeds, and MLC NAND flash memory, the M.2 SSD 600 easily handles everyday computing tasks as well as demanding multimedia applications, delivering steadfast reliability.
MLC NAND flash inside
Transcend s M.2 SSD 600 is manufactured with reliable, top-tier MLC NAND flash memory to ensure superior stability and endurance, making it well-suited to high-end applications.
Perfect for your Ultrabook
Compliant with all M.2 form factors from Type 2242, 2260, to 2280, Transcend s MLC M.2 SSDs are perfect for use in Ultrabooks and lightweight notebooks. Measured at just 60mm in length, the M.2 SSD 600 makes for an easy upgrade to your computer, taking up little space while giving it a much needed energy boost.
Superior transfer speeds
Featuring the M.2 standard (60mm), the next generation SATA III 6Gb/s interface and a powerful controller, Transcend s M.2 SSD 600 reaches incredible read and write speeds of up to 550MB/s and 460MB/s. When used as a cache, the M.2 SSD 600 provides 1.5 times faster boot time than conventional hard drives.
Trusted endurance. Steadfast reliability.
Transcend s M.2 SSD 600 offers great Terabytes Written (TBW) values (up to 1,100 TB) indicating the total amount of data you can write into the drive over its lifetime. You can count on the drive to stay reliable even under an intensive workload.
Store more in less space
The M.2 form factor enables expansion and integration of functions onto a single form factor module solution. M.2 SSDs include a smaller form factor but with larger capacities than that of mSATA and half-slim SSDs.
Potent and feature-laden
Despite its extra-small dimensions, the M.2 SSD 600 boasts a DDR3 DRAM cache and contains advanced features to enhance the performance of the SSD.
Error Correcting Code (ECC)
Detects and corrects transfer errors to prevent data corruption
Garbage Collection
Relocates existing data to release memory blocks
Wear-leveling
Distributes data evenly across memory cells to prolong SSD s lifespan
DevSleep
Intelligently shuts down SATA interface when not in use to prolong device s battery life
DDR3 DRAM cache
Stores a temporary copy of the most active data to shorten access times
SSD Scope software
Transcend SSD Scope is advanced, user-friendly software that makes it easy to ensure your Transcend SSD remains healthy, and continues to run fast and error-free by determining the condition and optimizing the performance of your drive.
Guaranteed quality
Transcend’s solid state drives are built to the highest standards and rigorously tested, and offer outstanding quality, performance, and reliability.
Specifications:
Dimensions: 60.0 mm x 22.0 mm x 3.58 mm (2.36" x 0.87" x 0.14")
Weight: 7 g (0.25 oz)
Bus Interface: SATA III 6Gb/s
Flash Type: MLC NAND flash
Capacity: 128 GB
Operating Temperature: 0°C (32°F) ~ 70°C (158°F)
Operating Voltage: 3.3V±5%
Performance:
Sequential Read/Write (ATTO): 560/220 MB/s
Sequential Read/Write (CrystalDiskMark): 530/220 MB/s
4K Random Read/Write (IOmeter): 70,000/55,000 IOPS
Terabytes Written (TBW): 360 TBW
Mean Time Between Failures (MTBF): 1,500,000 hour(s)
Drive Writes Per Day (DWPD): 2 (3 yrs)
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Certificate : CE/FCC/BSMI
Warranty: Three-year Limited Warranty
Warranty does not apply when SSD Scope s wear-out indicator displays 0% within the warranty coverage.
System Requirement:
Operating System
Microsoft Windows 7
Microsoft Windows 8
Microsoft Windows 10
Linux Kernel 2.6.31 or later
Note
Please make sure that your computer has a M.2 slot.
Technology:
- TRIM & NCQ Command
- S.M.A.R.T.
- DDR3 DRAM Cache
- Advanced Garbage Collection
- DevSleep Mode
