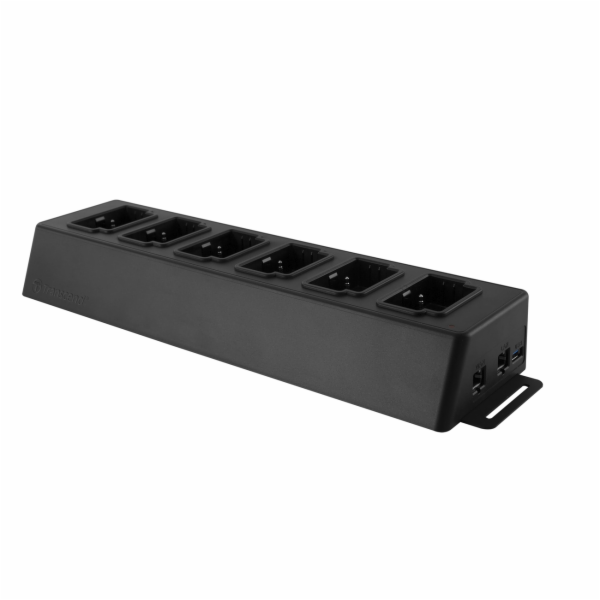

Transcend TS-DPD6N dokovací stanice pro osobní kameru DrivePro Body 30/60, 6 portů, USB 3.0, 1x LAN, 1x WAN, černá

Transcend TS-DPD6N dokovací stanice pro osobní kameru DrivePro Body 30 a DrivePro Body 60, 6 portů, USB 3.0, 1x LAN, 1x WAN, černá

Designed exclusively for Transcend s DrivePro Body 30 and DrivePro Body 60 body cameras, Transcend s TS-DPD6N docking station offers a complete camera management, charging, and data upload solution. The six-port docking station is network-based, providing two Ethernet ports for scalability and fast deployment. A LAN port is used for administrative setup, whereas a WAN port is for data upload to a designated folder while charging. A USB 3.1 Gen 1 port is also included for storing video recordings and snapshots to external storage devices.

Installation Guide
Connect the docking station to an electrical outlet, and switch on.
Connect the docking station to a PC via the LAN port, and to an AP router or an active Internet port via the WAN port.
Change the IP address to 10.10.0.100.
Open a web browser, and link to 10.10.0.1 webpage to open settings.
Complete setup for data uploading while charging.

Specifications:
Dimensions: 423mm x 105mm x 54mm (16.65" x 4.13" x 2.13")
Weight: 980 g (34.57 oz)
USB Type: USB Type B to USB Type A
USB Interface: USB 3.1 Gen 1 (backward compatible with USB 2.0)
Network Port:
WAN: 10/100/1000 Mbps Ethernet
LAN: 10/100 Mbps Ethernet
Power Supply: 19V/3.42A
Operating Temperature: 0°C (32°F) ~ 40°C (104°F)
Storage Temperature: -20°C (-4°F) ~ 70°C (158°F)
Certificates: CE, FCC, BSMI, C-Tick, KC
Warranty: Two-year Limited Warranty

System Requirements:
Desktop or notebook computer with an Internet port, and one of the following operating systems:
Microsoft Windows 7
Microsoft Windows 8
Microsoft Windows 8.1
Microsoft Windows 10
