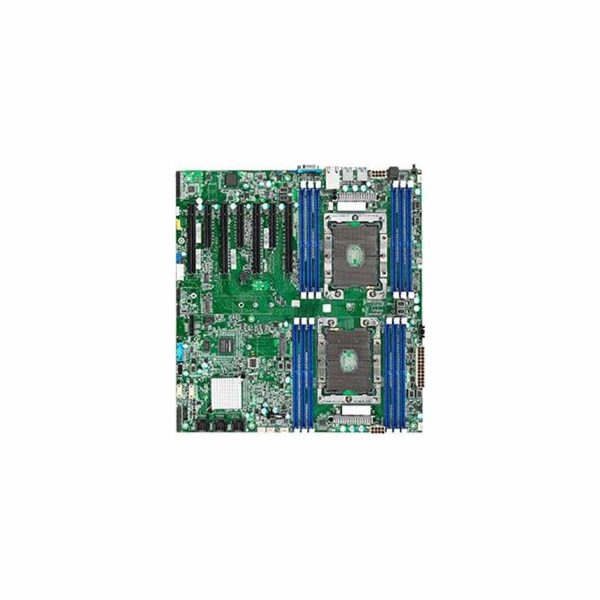

TYAN Tempest HX S7100 2x 3647, 12x DDR4 ECCr, 14x SATA, 7x PCIe (4 x16,3 x8),2x M.2, 2x 1Gb LAN, IPMI

Tyan Tempest HX S7100 (S7100GM2NR) Specifications


Processor Q ty / Socket Type (2) LGA3647
Supported CPU Series Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor
Thermal Design Power (TDP) Wattage Max up to 205W
System Bus Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support
Chipset PCH Intel C621
Memory Supported DIMM Qty (6)+(6) DIMM slots
DIMM Type / Speed DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / Intel Optane DC Persistent Memory Module (DCPMM)
Capacity Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
Memory channel 6 Channels per CPU
Memory voltage 1.2V
Notification: DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. / Intel Optane DC Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact Tyan Technical Support for more detail.
Expansion Slots PCI-E (4) PCI-E Gen3 x16 slots / (3) PCI-E Gen3 x8 slots
LAN Q ty / Port (2) GbE ports (1 port shared with IPMI)
Controller Intel I350-AM2
Storage SATA Connector (2) Mini-SAS HD (8-ports)
Controller Intel C621
Speed 6Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
sSATA Connector (2) SATA-DOM / (1) Mini-SAS HD (4-ports)
Controller Intel C621
Speed 6Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
NVMe Connector (M.2) (1) 2242 (by PCI-E interface) / (1) 2280/2260/2242 (by PCI-E interface)
Graphic Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2500
Input /Output Others (1) ID button
USB (3) USB 2.0 ports (2 via cable, 1 Type-A) / (6) USB3.0 ports (4 at rear, 2 via cable)
COM (1) header
VGA (1) D-Sub 15-pin VGA port (at rear)
RJ-45 (2) GbE ports
Front Panel (1) 2 x 5 header
SATA (2) SATA/SATA-DOM connectors + (3) Mini-SAS (4-in-1) connectors
Power SSI 24-pin + 8-pin + 8-pin power connectors
TPM (Optional) TPM Support Please refer to our TPM supported list.
System Monitoring Chipset Aspeed AST2500
Fan Total (6) 4-pin headers
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator
Others Watchdog timer support
Server Management Onboard Chipset Onboard Aspeed AST2500
AST2500 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM size AMI / 32MB
Feature Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1
Physical Dimension Form Factor SSI EEB compatible
Board Dimension 12.2” x 13.04” (309.8 x 331.2mm)
Regulation FCC (DoC) Class B
CE (DoC) Class B
RCM Class B
VCCI Class B
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Operating System OS supported list Please refer to our AVL support lists.
Package Contains Motherboard (1) S7100 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN Device Driver CD
I/O Shield (1) I/O Shield
Cable SATA (2) SATA signal cables
