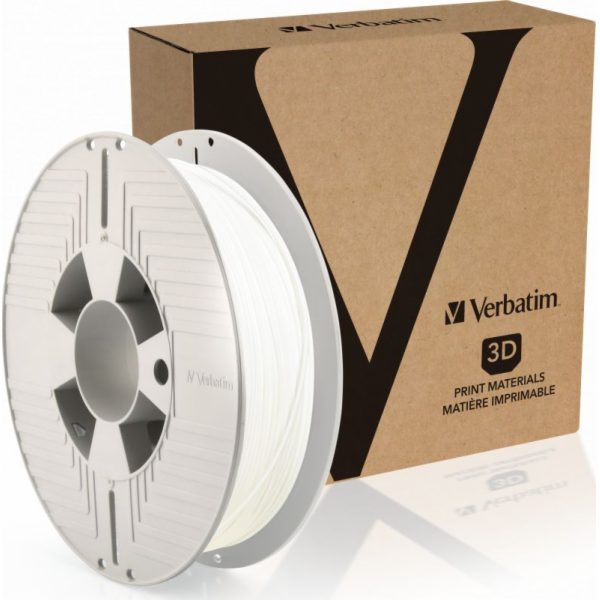

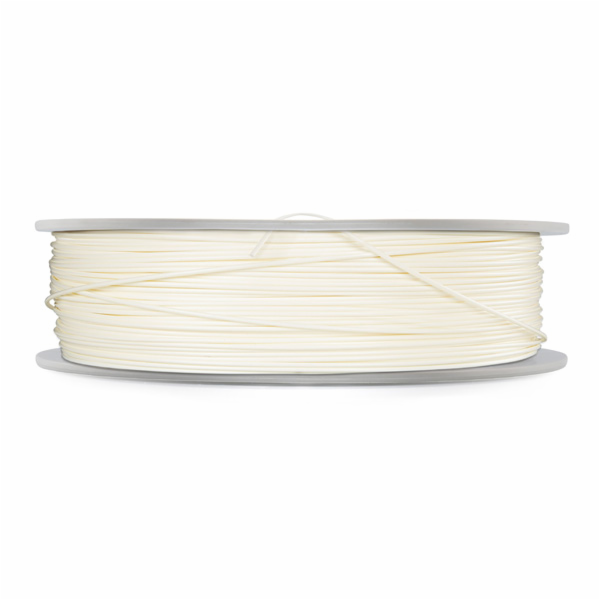

VERBATIM 3D Printer Filament PMMA DURABIO 1.75mm, 159m, 500g white

TECHNICAL SPECIFICATIONS



Diameter
1.75 mm ± 0.05 mm


Roundness
>95%


RAL
9003


Weight
500 g


Color
white






MATERIAL PROPERTIES



Density
1.31 g/cm3 (Test method: ISO 1183)


MVR 230°C/2.16 kg
10 cm3/10min (ISO 1133)


MFR 230°C/2.16 kg
13 gr/10 min (Test method: ISO 1133)


Elongation at break
130% (Test method: ISO 527)


Tensile strength
64 MPa (Test method: ISO 527)


Tensile modulus
2300MPa (Test method: ISO 527)


Flexural modulus
2100MPa (Test method: ISO 178)


Flexural strength
94 MPa (Test method: ISO 178)


Impact strength - Charpy method 23°C
9 kJ/m2 (Test method: ISO 179)


Moisture absorption
0.2% (Test method: MCC Method)


Coefficient of linear thermal expansion (-20~80°C)
7.3E-05 (Test method: ISO 11359-2)


Heat deflection temperature 1.80 MPa
82°C (Test metod: ISO 75-1)


Transparency
2% (Test method: ISO 13468)






RECOMMENDED PRINTER SET UP



Extrusion temperature
225 - 245°C


Melting temperature
235°C


Bed temperature
85°C


Printing speed
50 mm/s


Fan speed (can be changed to 0% is the model is warping)
10%
