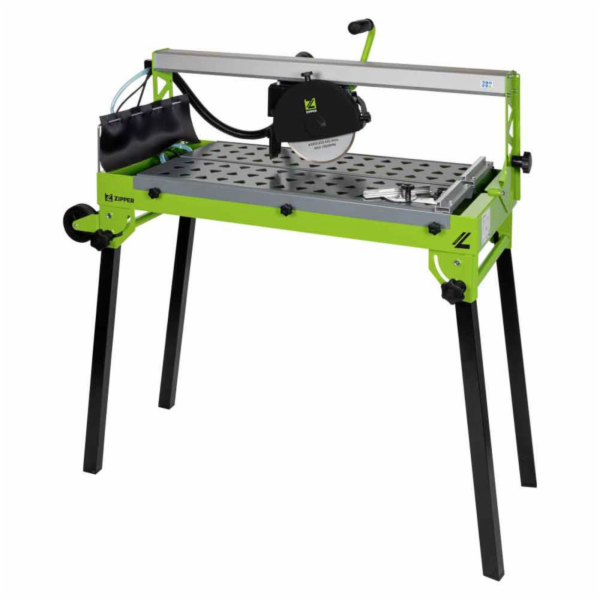

Zipper ZI-FS200-720 Fliesenschneidemaschine

Typ: Řezací stroj na dlaždice
Zdroj napájení: Síť
Barva: zelená / stříbrná
Šířka (cm): 118,0
Výška (cm): 52,0
Hloubka (cm): 119,0
Hmotnost (kg): 34,0

Zipper ZI-FS200-720 tile cutting machine

The Zipper ZI-FS200-720 tile cutting machine is a powerful solution for precise cuts on construction sites and in workshops. With a O 200 mm diamond disc and sliding slide, it allows clean and accurate cuts. The integrated cooling water pump ensures efficient cooling, while the foldable feet and transport wheels allow easy transport. Thanks to the swivelling cutting unit up to 45 degrees, it can be used flexibly for different cutting angles.

Features:


O 200 mm diamond blade for precise cuts
Sliding slide for clean cutting
Cooling water pump with up to 500 l/h for efficient cooling
Foldable feet and transport wheels for easy transport
Cutting unit swivelling up to 45° for flexible cutting angle


Technical data:


Motor power S1: 500 W
Motor power S6 (15%): 800 W
Speed: 2990 U/min
Protection class: IP54
Voltage: 230 V / 50 Hz
Table size: 800 x 420 mm
Installation dimensions: 1180 x 520 x 1190 mm
Max cutting height 90°: 40 mm
Max cutting height 45°: 25 mm
Max cutting length 90°: 720 mm
Diamond disc: 200 x 25.4 x 2.4 mm
Sound power level: 98 dB(A)
Sound pressure level: 85 dB(A)
Gross weight: 38 kg
Net weight: 34 kg
